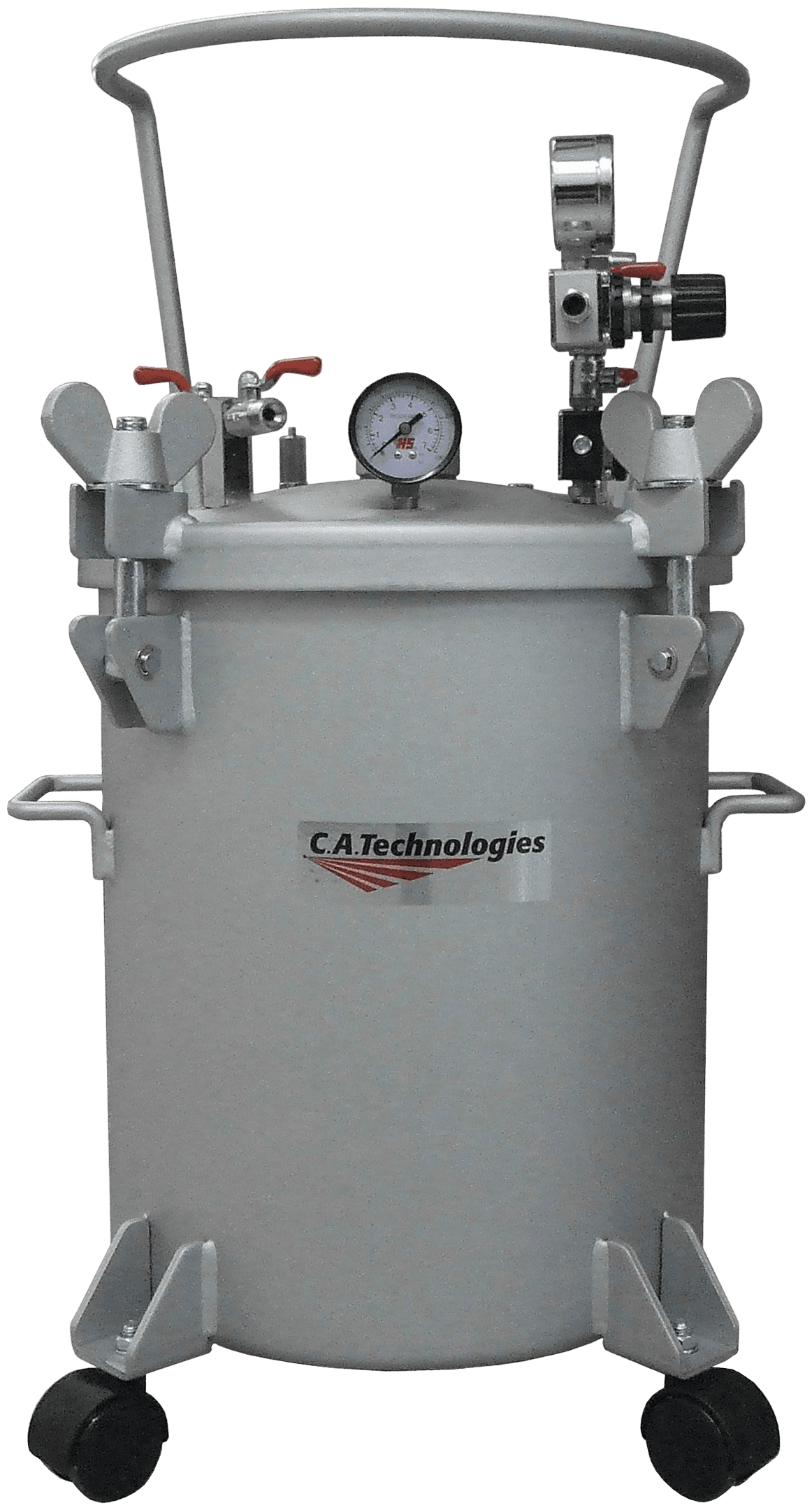

C.A. Technologies Pressure Tanks
C.A. Technologies Pressure Tanks — 2.5 to 12.5 Gallon, Standard, Agitated, Bottom-Outlet & Stainless
C.A. Technologies pressure tanks (pots) hold a larger supply of material and feed it to one or more spray guns under regulated air pressure — the right choice when a cup runs dry too fast or you're spraying high volume. They're offered from 2.5 through 12.5 gallons, with single-regulator (fluid only) and double-regulator (separate fluid and atomizing-air) configurations. Agitated versions add a built-in mixer to keep metallics, waterborne, and settling coatings in suspension; bottom-outlet versions draw from the base for complete material use and easier high-viscosity feed; and galvanized or 300-series stainless steel construction matches the tank to your material — stainless for waterborne and corrosive coatings. Removable inner liners cut cleanup and color-change time. Every tank ships with ASME-style safety relief and shares a common parts platform of regulators, gauges, gaskets, lids, liners, and pickup tubes.
Specifications
Type
Pressure tank / pressure pot
Feed
Pressure feed (to one or more guns)
Body
Galvanized steel or 300-series stainless
Max Fluid
See tank/regulator rating
Nozzle Range
—
Key Features
Capacities from 2.5 to 12.5 gallons for higher-volume spraying
Single-regulator (fluid) and double-regulator (fluid + atomizing air) configurations
Agitated versions keep metallics, waterborne & settling coatings in suspension
Bottom-outlet versions for complete material use and high-viscosity feed
Galvanized or 300-series stainless construction
stainless for waterborne/corrosive
Removable inner liners cut cleanup and color-change time
Common parts platform
regulators, gauges, gaskets, lids, liners, pickup tubes
Model Selection Guide
Choose tank capacity by how much material you spray between refills, then the configuration: double-regulated for full pressure control, agitated for metallics/waterborne/settling materials, bottom-outlet for complete drain and heavy material, and stainless for waterborne or corrosive coatings. Call CET at 586-210-0555 to match a tank to your setup.
| Model | Tip Sizes | Pressure | Material Compatibility | |
|---|---|---|---|---|
| 2.5 Gallon — Standard | 2.5 gal | Single / double regulated | General pressure-feed spraying, small-to-mid volume | Shop → |
| 2.5 Gallon — Agitated | 2.5 gal | Single / double regulated, agitated | Metallics, waterborne & settling coatings | Shop → |
| 2.5 Gallon — Stainless | 2.5 gal | Single / double regulated | Waterborne & corrosive coatings | Shop → |
| 5 Gallon — Standard | 5 gal | Single / double regulated | Higher-volume general pressure-feed spraying | Shop → |
| 5 Gallon — Agitated / Bottom-Outlet | 5 gal | Single / double regulated, agitated | Metallics, waterborne, settling & high-viscosity coatings | Shop → |
| 5 Gallon — Stainless | 5 gal | Single / double regulated | Waterborne & corrosive coatings, higher volume | Shop → |
| 10 Gallon — Standard / Agitated | 10 gal | Single / double regulated, agitated & bottom-outlet options | High-volume production, multi-gun feed | Shop → |
| 12.5 Gallon — Stainless | 12.5 gal | Single / double regulated | Largest capacity — waterborne & corrosive, multi-gun feed | Shop → |
Technical Specifications
- Gun Type
- Pressure tank / pressure pot
- Feed Type
- Pressure feed (to one or more guns)
- Gun Body
- Galvanized steel or 300-series stainless
- Max Fluid Pressure
- See tank/regulator rating
- Fluid Nozzle Range
- —
Replacement Parts
Genuine C.A. Technologies replacement parts in stock at CET. Part numbers without a shop link are available by phone — call or text 586-210-0555.
Cups, Lids & Liners
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 51-201 | 2.5 Gallon Pressure Tank Single Regulator | — | Shop → |
| 51-202 | 2.5 Gallon Pressure Tank Stainless Steel Fitted | — | Shop → |
| 51-203 | 2.5 Gallon Pressure Tank Single Regulator Air Agit | — | Shop → |
| 51-204 | 2.5 Gallon Pressure Tank Double Regulator Air Agit | — | Shop → |
| 51-207 | 2.5 Gallon Pressure Tank W Inline Regulators | — | Shop → |
| 51-210 | 2.5 Gallon Bottom Outlet Tank No Reg No Agit | — | Shop → |
| 51-211 | 2.5 Gallon Bottom Outlet Tank 1 Reg No Agit | — | Shop → |
| 51-212 | 2.5 Gallon Bottom Outlet Tank 2 Reg No Agit | — | Shop → |
| 51-213 | 2.5 Gallon Bottom Outlet Tank 1 Reg Air Agit | — | Shop → |
| 51-214 | 2.5 Gallon Bottom Outlet Tank 2 Reg Air Agit | — | Shop → |
| 51-220 | Gasket 2.5 Gallon Tank | — | Shop → |
| 51-222 | Regulator Only 2 Gallon Tank 52 6 | — | Shop → |
| 51-226 | Tank Shell 2.5 Gallon | — | Shop → |
| 51-228 | Tank Lid 2.5 Gallon | — | Shop → |
| 51-228A | Agitated Tank Lid 2.5 Gallon | — | Shop → |
| 51-229 | Tank Relief Valve | — | Shop → |
| 51-231 | Tank Liner 2.5 Gallon 10 Pack 51 231 10 | — | Shop → |
| 51-234 | Tank Vent Valve | — | Shop → |
| 51-235 | 2 Gallon Pressure Tank Handle | — | Shop → |
| 51-252 | Glide For Tank Feet | — | Shop → |
| 51-259 | Tank Nut | — | Shop → |
| 51-261 | Disposable Rigid Tank Liner 2.5 Gallon 12 Pack 51 261 12 | — | Shop → |
| 51-289 | Packing Set For Agit Tanks | — | Shop → |
| 51-501 | 5 Gallon Pressure Tank Single Regulation Hand Agit | — | Shop → |
| 51-502 | 5 Gallon Pressure Tank Double Regulation Hand Agit | — | Shop → |
| 51-503 | 5 Gallon Pressure Tank Single Regulation Air Agit | — | Shop → |
| 51-504 | 5 Gallon Pressure Tank Double Regulation Air Agit | — | Shop → |
| 51-507 | 5 Gallon Pressure Tank Single Regulation No Agit | — | Shop → |
| 51-508 | 5 Gallon Pressure Tank Double Regulation No Agit | — | Shop → |
| 51-510 | 5 Gallon Pressure Tank Bottom Outlet No Regulation | — | Shop → |
| 51-511 | 5 Gallon Pressure Tank Bottom Outlet Single Regulation | — | Shop → |
| 51-512 | 5 Gallon Pressure Tank Bottom Outlet Double Regulation | — | Shop → |
| 51-513 | 5 Gallon Pressure Tank Bottom Outlet No Reg Air Agit | — | Shop → |
| 51-514 | 5 Gallon Pressure Tank Bottom Outlet Single Reg Air Agit | — | Shop → |
| 51-515 | 5 Gallon Pressure Tank Bottom Outlet Double Reg Air Agit | — | Shop → |
| 51-523SS | Fluid Pick Up Tube 5 Gallon Tank Stainless Steel | — | Shop → |
| 51-526 | Tank Shell | — | |
| 51-527 | Tank Liner | — | Shop → |
| 51-530SS | Material Outlet 5 Gallon Tank Stainless Steel | — | Shop → |
| 51-533 | Tank Lid Plug | — | Shop → |
| 51-534 | Pick Up Tube 10 Gallon Tank | — | Shop → |
| 51-538 | Tank Shell For 10 Gallon Tank | — | Shop → |
| 51-539 | Inner Liner For 10 Gallon Tank Stainless Steel | — | Shop → |
| 51-543 | Liner For 10 Gallon 5 Gallon Tanks 10 Pack | — | Shop → |
| 51-551 | 10 Gallon Pressure Tank Single Regulation No Agit | — | Shop → |
| 51-552 | 10 Gallon Pressure Tank Double Regulation No Agit | — | Shop → |
| 51-553 | 10 Gallon Pressure Tank Single Regulation Air Agit | — | Shop → |
| 51-554 | 10 Gallon Pressure Tank Double Regulation Air Agit | — | Shop → |
| 51-557 | 10 Gallon Pressure Tank Single Regulation Hand Agit | — | Shop → |
| 51-558 | 10 Gallon Pressure Tank Double Regulation Hand Agit | — | Shop → |
| 51-560 | 10 Gallon Pressure Tank Bottom Outlet No Reg | — | Shop → |
| 51-561 | 10 Gallon Pressure Tank Bottom Outlet Single Reg | — | Shop → |
| 51-562 | 10 Gallon Pressure Tank Bottom Outlet Double Reg | — | Shop → |
| 51-563 | 10 Gallon Pressure Tank Bottom Outlet No Regulator Agitated | — | Shop → |
| 51-564 | 10 Gallon Pressure Tank Bottom Outlet Single Reg Agitated | — | Shop → |
| 51-565 | 10 Gallon Pressure Tank Bottom Outlet Single Reg Agitated | — | Shop → |
| 51-801 | 2.5 Gal All Stainless Steel Pressure Tank 1 Regulator | — | Shop → |
| 51-802 | 2.5 Gal All Stainless Steel Pressure Tank 2 Regulators | — | Shop → |
| 51-803 | 2.5 Gal All Stainless Steel Agitated Tank 1 Regulator | — | Shop → |
| 51-804 | 2.5 Gal All Stainless Steel Agitated Tank 2 Regulators | — | Shop → |
| 51-851 | 5 Gal All Stainless Steel Pressure Tank 1 Regulator | — | Shop → |
| 51-852 | 5 Gal All Stainless Steel Pressure Tank 2 Regulators | — | Shop → |
| 51-853 | 5 Gal All Stainless Steel Agitated Tank 1 Regulator | — | Shop → |
| 51-854 | 5 Gal All Stainless Steel Agitated Tank 2 Regulator | — | Shop → |
| 51-881 | 12 1.2 Gallon Stainless Steel Tank 1 Regulator | — | Shop → |
| 51-882 | 12 1.2 Gallon Stainless Steel Tank 2 Regulators | — | Shop → |
| 51-883 | 12 1.2 Gallon Stainless Steel Tank Agitated 1 Reg | — | Shop → |
| 51-884 | 12 1.2 Gallon Stainless Steel Tank Agitated Tank 2 Reg | — | Shop → |
| 51-890 | 12 1.2 Gallon Stainless Steel Tank Lid Gasket | — | Shop → |
| 51-941 | 12 1.2 Gallon Stainless Steel Bottom Outlet Tank 1 Reg | — | Shop → |
| 51-944 | 12 1.2 Gallon Stainless Steel Bottom Outlet Tank 2 Reg Agitated | — | Shop → |
| 51-945 | 12 1.2 Gallon Stainless Steel Bottom Outlet Tank No Reg Agitated | — | Shop → |
Triggers, Springs & Seals
Service & Repair Parts
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 51-223SS | S S Fluid Pick Up Tube 2 Gal | — | Shop → |
| 51-224 | Caster Each | — | Shop → |
| 51-225 | Wrench | — | Shop → |
| 51-230 | Material Outlet | — | Shop → |
| 51-230SS | Fluid Outfit 2 Gallon Stainless Steel | — | Shop → |
| 51-232 | Inlet Strainer Assembly | — | Shop → |
| 51-233 | Pin Assembly | — | Shop → |
| 51-236 | Eye Bolt Assembly | — | Shop → |
| 51-237 | Air Flow Diffuser | — | Shop → |
| 51-238 | Guard Halo | — | Shop → |
| 51-239 | Dm Nipple 1 4 X 1 4 With 3 8 24 Internal | — | Shop → |
| 51-240 | Air Motor | — | Shop → |
| 51-242 | Coupling | — | Shop → |
| 51-246 | Propeller | — | Shop → |
| 51-247 | Speed Control | — | Shop → |
| 51-248 | Strainer Screen | — | Shop → |
| 51-254 | Screen Backing | — | Shop → |
| 51-255 | Screen Retainer | — | Shop → |
| 51-256 | Inlet Strainer Body 2 Gal | — | Shop → |
| 51-258 | Agit Shaft 2 Gallon | — | Shop → |
| 51-262 | Set Screw Nut 1 2 20 X (1.4 mm) | — | Shop → |
| 51-264 | Set Screw Nut 1 2 20 X 1 | — | Shop → |
| 51-266 | Roll Pin Zp | — | Shop → |
| 51-267 | 4 Way Union Tee | — | Shop → |
| 51-268 | Elbow | — | Shop → |
| 51-271 | Motor Exhaust | — | Shop → |
| 51-272 | 1 4 Bar Stock Tee King Spark | — | Shop → |
| 51-274 | Fluid Outlet Ball Valve | — | Shop → |
| 51-275 | Fluid Outlet Elbow | — | Shop → |
| 51-276 | Agitator Shaft Bottom Outlet 12 | — | |
| 51-280 | Swivel Connection | — | Shop → |
| 51-287 | Motor Base | — | Shop → |
| 51-517 | Hand Agitation Shaft Stainless Steel | — | Shop → |
| 51-518 | 10 Gallon Hand Agititation Shaft | — | |
| 51-519 | Retainer Clip 5 10 Gallon | — | Shop → |
| 51-523 | Fluid Tube 5 Gallon | — | Shop → |
| 51-524 | Material Fill Cap | — | Shop → |
| 51-529 | Handle Grip Assembly | — | Shop → |
| 51-530 | Outlet | — | Shop → |
| 51-532 | Strainer Assembly | — | Shop → |
| 51-535 | Guard | — | Shop → |
| 51-536 | Paddle Assembly | — | Shop → |
| 51-540 | Centering Ring | — | Shop → |
| 51-541 | Centering Guide | — | Shop → |
| 51-542 | Inlet Screen Stainless | — | Shop → |
| 51-544 | Agit Shaft 5 Gallon | — | Shop → |
| 51-545 | Agit Shaft 10 Gallon | — | Shop → |
| 51-548 | Inlet Strainer Housing 5 10 Gallon | — | Shop → |
| 51-549 | Backing Plate Inlet Screen | — | Shop → |
| 51-910 | 2.5 Gal All Stainless Steel Bottom Outlet No Regulator | — | Shop → |
| 51-920 | 5 Gal All Stainless Steel Bottom Outlet 1 Regulator | — | Shop → |
| 51-921 | 5 Gal All Stainless Steel Bottom Outlet 1 Regulator | — | Shop → |
| 52-10A | Complete Fluid Regulator Assembly | — | Shop → |
| 52-11A | Complete Air Regulator Assembly | — | Shop → |
| 52-58 | Gage 100 Psi Bottom Mount (1.4 mm) | — | Shop → |
| 52-150 | 1 4 Air Shut Off Valve | — | Shop → |
| 52-151 | 3 8 Material Shut Off Valve | — | Shop → |
| 52-151SS | 3 8 Material Shut Off Valve Stainless Steel | — | Shop → |
| 52-302 | Dual Regulator Assembly | — | Shop → |
| 52-303 | Inline Regulator Assembly | — | Shop → |
| 53-562 | Air Fitting 1 4 NPT X 1 4 NPS Brass | — | Shop → |
| 98-0261 | 1 4 Pipe Plug S S | — | Shop → |
C.A. Technologies Pressure Tanks Documents
View All →C.A. Technologies 2.5 Gallon Pressure Tanks
Pressure Tanks · 51-201, 51-202, 51-202-SS, 51-207
C.A. Technologies service manual for the 2.5 Gallon Pressure Tanks (models 51-201, 51-202, 51-202-SS, 51-207). 4-page PDF — view online or download free from CET.
C.A. Technologies 2.5 Gallon Agitated Pressure Tanks
Pressure Tanks · 51-203, 51-204
C.A. Technologies service manual for the 2.5 Gallon Agitated Pressure Tanks (models 51-203, 51-204). 4-page PDF — view online or download free from CET.
C.A. Technologies 2.5 Gallon Stainless Steel Pressure Tanks
Pressure Tanks · 51-801, 51-802
C.A. Technologies service manual for the 2.5 Gallon Stainless Steel Pressure Tanks (models 51-801, 51-802). 5-page PDF — view online or download free from CET.
C.A. Technologies 5 Gallon Pressure Tanks
Pressure Tanks · 51-501, 51-502, 51-507, 51-508
C.A. Technologies service manual for the 5 Gallon Pressure Tanks (models 51-501, 51-502, 51-507, 51-508). 4-page PDF — view online or download free from CET.
C.A. Technologies 5 Gallon Agitated Pressure Tanks
Pressure Tanks · 51-503, 51-504
C.A. Technologies service manual for the 5 Gallon Agitated Pressure Tanks (models 51-503, 51-504). 4-page PDF — view online or download free from CET.
C.A. Technologies 5 Gallon Stainless Steel Pressure Tanks
Pressure Tanks · 51-851, 51-852
C.A. Technologies service manual for the 5 Gallon Stainless Steel Pressure Tanks (models 51-851, 51-852). 5-page PDF — view online or download free from CET.
C.A. Technologies 10 Gallon Pressure Tanks
Pressure Tanks · 51-551, 51-552, 51-557, 51-558
C.A. Technologies service manual for the 10 Gallon Pressure Tanks (models 51-551, 51-552, 51-557, 51-558). 4-page PDF — view online or download free from CET.
C.A. Technologies 10 Gallon Agitated Pressure Tanks
Pressure Tanks · 51-553, 51-554
C.A. Technologies service manual for the 10 Gallon Agitated Pressure Tanks (models 51-553, 51-554). 5-page PDF — view online or download free from CET.
C.A. Technologies 12.5 Gallon Stainless Steel Pressure Tanks
Pressure Tanks · 51-881, 51-882
C.A. Technologies service manual for the 12.5 Gallon Stainless Steel Pressure Tanks (models 51-881, 51-882). 5-page PDF — view online or download free from CET.
Frequently Asked Questions
Get In Touch
Talk to a
Finishing Expert.
Whether you need help selecting equipment, sourcing a manual, or quoting a custom system — our team is here to help.
Contact UsPhone
(586) 210-0555Address
44432 Reynolds Drive
Clinton Township, MI 48036
Hours
Mon–Fri
8:00am – 4:30pm ET
