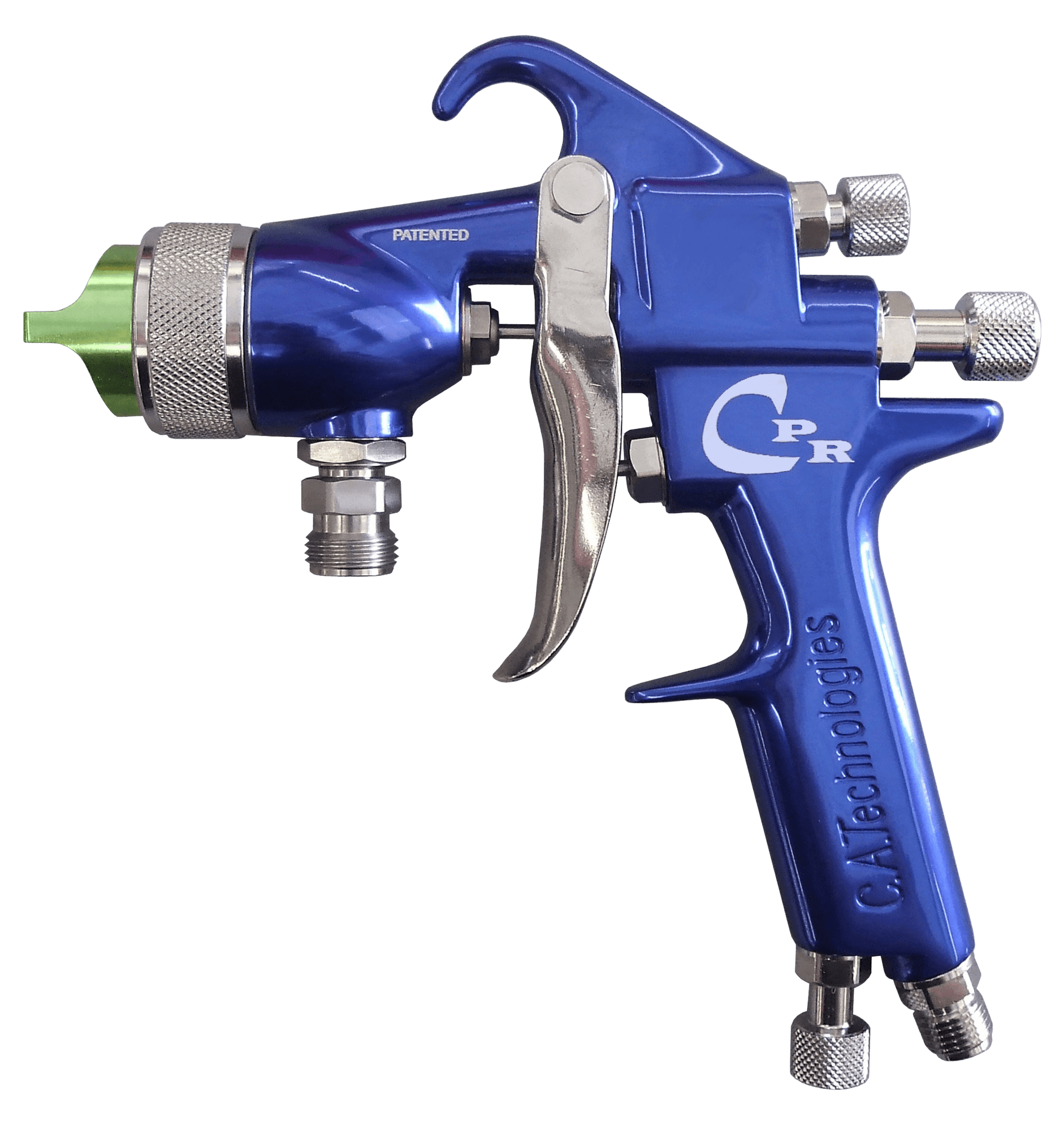

C.A. Technologies CPR Spray Gun
C.A. Technologies CPR — Compliant Pressure-Reduced HVLP Spray Gun for Fine Finishing
The C.A. Technologies CPR (Compliant Pressure-Reduced) is a dedicated HVLP/pressure-reduced fine-finish platform built to meet transfer-efficiency regulations while laying down a soft, high-quality finish. The core CPR is the everyday gun; the CPR-FE is the fine-finish edition tuned for the smoothest topcoats with 40-18xx needles; the gravity CPR-G adds a gravity cup with 3M PPS (W / W-PPS) cup options; and the CPR-T3 carries a larger 1.3–2.2 mm tip range on 23-1301/23-2101 caps for higher-build primers and heavier-bodied materials. All run compliant maximum gun-inlet pressures and share the CAT fluid-tip lineup from 0.8 mm up, so a single platform covers stains and sealers through high-build primers. Stainless fluid passages make the CPR family waterborne-ready.
Specifications
Type
Compliant pressure-reduced HVLP spray gun
Feed
Pressure-reduced; gravity feed (CPR-G)
Body
Forged aluminum
Fluid Path
Stainless steel
Air Inlet
1/4" NPS (m)
Nozzle Range
0.8 mm – 2.2 mm
Key Features
Compliant pressure-reduced HVLP
meets transfer-efficiency rules with a soft fine finish
CPR-FE fine-finish edition for the smoothest topcoats (40-18xx needles)
Gravity CPR-G with 3M PPS (W / W-PPS) cup options
CPR-T3 high-build build
1.3–2.2 mm tips for primers and heavier materials
Shared CAT fluid-tip lineup from 0.8 mm up; stainless fluid path for waterborne
Standard CAT Pack tip/needle/cap sets available
Model Selection Guide
Choose the core CPR for everyday compliant finishing, the CPR-FE for the finest topcoats, the gravity CPR-G if you run a gravity cup or 3M PPS, or the CPR-T3 for high-build primers and heavier materials. Match the cap, tip, and needle to your material. Call CET at 586-210-0555.
| Model | Tip Sizes | Pressure | Material Compatibility | |
|---|---|---|---|---|
| CPR | 0.8–1.2 mm+ | HVLP / pressure-reduced (compliant) | Everyday compliant fine finishing — topcoats, sealers, stains | Shop → |
| CPR-FE | 0.8 mm+ | HVLP / pressure-reduced (compliant) | Fine-finish topcoats — the smoothest patterns | Shop → |
| CPR-G | 0.8–1.2 mm+ | HVLP / pressure-reduced — gravity feed | Gravity-feed compliant finishing; 3M PPS compatible | Shop → |
| CPR-T3 | 1.3–2.2 mm | HVLP — 29 PSI max cap (compliant) | High-build primers & heavier-bodied materials | Shop → |
Technical Specifications
- Gun Type
- Compliant pressure-reduced HVLP spray gun
- Feed Type
- Pressure-reduced; gravity feed (CPR-G)
- Gun Body
- Forged aluminum
- Fluid Path
- Stainless steel
- Air Inlet
- 1/4" NPS (m)
- Fluid Nozzle Range
- 0.8 mm – 2.2 mm
Replacement Parts
Genuine C.A. Technologies replacement parts in stock at CET. Part numbers without a shop link are available by phone — call or text 586-210-0555.
Air Caps
Fluid Nozzles & Tips
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 33-0208 | Series 300H Replacement Orifice 8 | — | Shop → |
| 33-0210 | Series 300H Replacement Orifice (1.0 mm) | — | Shop → |
| 33-0212 | Series 300H Replacement Orifice (1.2 mm) | — | Shop → |
| 33-0213 | Series 300H Replacement Orifice (1.3 mm) | — | Shop → |
| 33-0214 | Series 300H Replacement Orifice (1.4 mm) | — | Shop → |
| 33-0215 | Series 300H Replacement Orifice (1.5 mm) | — | Shop → |
| 33-0217 | Series 300H Replacement Orifice (1.7 mm) | — | Shop → |
| 33-0219 | Series 300H Replacement Orifice (1.9 mm) | — | Shop → |
| 33-0222 | Series 300H Replacement Orifice (2.2 mm) | — | Shop → |
| 33-1202 | SLP Fluid Nozzle Body | — | Shop → |
| 60-123 | Nozzle Body Seal | — | Shop → |
| 60-J31H | Series J300h Gravity Nozzle Carrier | — | Shop → |
| 60-L31H | Fluid Nozzle Carrier HVLP USA Version | — | Shop → |
| 98-0104 | Orifice Socket 3 8 X 1 4 Dr | — | Shop → |
Fluid Needles
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 40-1308 | Series 300H Needle Assembly For 8mm 308 | — | Shop → |
| 40-1310 | Series 300H Needle Assembly For 1.0mm 310 | — | Shop → |
| 40-1312 | Series 300H Needle Assembly For 1.2mm 312 | — | Shop → |
| 40-1313 | Series 300H HVLP Needle Assembly For 1.3mm 313h | — | Shop → |
| 40-1314 | Series 300H HVLP Needle Assembly For 1.4mm 314h | — | Shop → |
| 40-1315 | Series 300H Needle Assembly For 1.5mm 315 | — | Shop → |
| 40-1317 | Series 300H Needle Assembly For 1.7mm 317 | — | Shop → |
| 40-1319 | Series 300H Needle Assembly For 1.9mm 319 | — | Shop → |
| 40-1322 | Series 300H Needle Assembly For 2.2mm 322 | — | Shop → |
| 40-1808 | 0.8mm Needle Assembly For Fe Ff | — | Shop → |
| 40-1810 | 1 0 1.2mm Needle Assembly For Fe Ff | — | Shop → |
| 40-1812 | 1 3 1.4mm Needle Assembly For Fe Ff | — | Shop → |
| 40-1815 | 1.5mm Needle Assembly For Fe Ff | — | Shop → |
| 40-1817 | 1.7mm Needle Assembly For Fe Ff | — | Shop → |
| 60-204 | Needle Return Spring Lynx | — | Shop → |
| 60-211 | Needle Return Spring For Fe Line And Tommygun | — | Shop → |
| 60-1329 | Needle Seal Cartridge For Fe Line And Tommygun | — | Shop → |
| 60-1400 | Needle Seal Cartridge L100c | — | Shop → |
Cups, Lids & Liners
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 51-400 | 700ml Plastic Gravity Cup For Full Sized Spray Guns | — | Shop → |
| 51-401 | 700ml Aluminum Gravity Cup For Full Sized Spray Guns | — | Shop → |
| 51-403 | 1000ml Aluminum Gravity Cup For Full Sized Spray Guns | — | Shop → |
| 51-418 | Screw Top Gravity Cup Lid | — | Shop → |
| 91-460 | 850ml H O Cup W Collar And Pressure Tubing | — | Shop → |
| 91-462 | Lids And Liners 850ml 25 Per Kit | — | Shop → |
| 91-465 | Cup And Collar 650ml 2 Per Box | — | Shop → |
| 91-466 | Lids And Liners 650ml 50 Per Kit | — | Shop → |
Repair Kits
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 10-111 | Techline Tool Kit | — | Shop → |
Fan & Air Control
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 60-125 | Air Valve Seal | — | Shop → |
| 60-302 | Air Valve Poppet L100c | — | Shop → |
| 60-1317 | Sideport Control For Fe Line And Tommygun | — | Shop → |
| 60-1319 | Air Control Assembly For Fe Line And Cat X | — | Shop → |
| 60-1320 | Air Valve Assembly For Bobcat Air Assisted Airless Fe Line And Tommygun | — | Shop → |
| 60-1504 | S Fan Control Assembly | — | Shop → |
| 60-1510 | Air Control | — | Shop → |
| 60-1520 | Air Valve Assembly | — | Shop → |
| 61-1003 | Air Valve Spring | — | Shop → |
Triggers, Springs & Seals
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 60-119 | Washer Low Density Polyethyl | — | Shop → |
| 60-124 | Fluid Inlet Seal | — | Shop → |
| 60-130 | Air Seal | — | Shop → |
| 60-131 | O-Ring | — | Shop → |
| 60-137 | Seal Ring Tomcat Gun | — | Shop → |
| 60-205 | Spring Seat | — | Shop → |
| 60-1033 | Trigger Pivot Set | — | Shop → |
| 60-2101 | Trigger | — | Shop → |
| 60-2111 | Trigger For Fe Line And Tommygun | — | Shop → |
| 98-5125 | O-Ring Tomahawk | — | Shop → |
| 98-5225 | O-Ring Tomahawk | — | Shop → |
| 98-8026 | O-Ring | — | Shop → |
Service & Repair Parts
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 51-430 | Gravity Gun Hook | — | Shop → |
| 52-300 | Mini Gun Regulator W Gage Fittings Ca Technologies Spray Equipment Spare Parts | — | Shop → |
| 60-35 | Head Insert For Fe Fine Finish | — | Shop → |
| 60-104 | Air Inlet Fitting | — | Shop → |
| 60-118 | Locknut Fluid Inlet | — | Shop → |
| 60-122 | Plug | — | Shop → |
| 60-126 | Fluid Inlet USA Version | — | Shop → |
| 60-127 | Jaguar Fluid Inlet USA Version | — | Shop → |
| 60-128 | Locknut Fluid Inlet USA Version | — | Shop → |
| 60-201 | Rear Bushing | — | Shop → |
| 60-202 | Fluid Control Knob Lynx | — | Shop → |
| 60-1312 | Fluid Control Knob For Fe Line And Tommygun | — | Shop → |
| 60-1315 | Shoulder Screw For Bobcat Air Assisted Airless Fe Line And Tommygun 2 Per | — | Shop → |
| 60-8001 | Multi Purpose Wrench Ca Technologies Spray Gun Spare Parts | — | Shop → |
| 91-475 | Mini Pass Through Regulator W Check Valve | — | Shop → |
| 98-0109 | Set Screw 5 16 24 X 3 8 S S | — | Shop → |
| 98-0112 | Multi Purpose Wrench Ca Technologies Spray Gun Spare Parts | — | Shop → |
| 98-0113 | Gun Brush | — | Shop → |
C.A. Technologies CPR Spray Gun Documents
View All →C.A. Technologies CPR
CPR
C.A. Technologies service manual for the CPR. 5-page PDF — view online or download free from CET.
C.A. Technologies CPR-FE
CPR-FE
C.A. Technologies service manual for the CPR-FE. 5-page PDF — view online or download free from CET.
C.A. Technologies CPR-G
CPR-G
C.A. Technologies service manual for the CPR-G. 5-page PDF — view online or download free from CET.
C.A. Technologies CPR-T3
CPR-T3
C.A. Technologies service manual for the CPR-T3. 3-page PDF — view online or download free from CET.
