Question 1

Which Wagner systems use the PEM-X1 gun?

Accepted Answer

The PEM-X1 has been Wagner's manual powder gun across three system generations: the Sprint X, the Sprint XE, and the current SPRINT 2 (B, H, Expert, and CG case set). It pairs with the EPG Sprint X(E) controllers on legacy systems and the WACON Sprint 2 family on current ones. That continuity means nozzles, electrode holders, extensions, and most wear parts carry over if you upgrade the system around the gun.

Question 2

What is the difference between the flat spray and round spray versions?

Accepted Answer

The flat spray (wide) nozzle version (2322587) produces a fan pattern suited to large, flat surfaces — panels, sheet goods, enclosures. The round spray version (2335844) uses a deflector cone (D18, D25, or D34) to throw a soft, round cloud that wraps around 3D parts, tubing, and profiles. The nozzles interchange on the same gun body, so you can own one gun and both nozzle systems.

Question 3

When does the PEM-X1 CG cup gun make sense?

Accepted Answer

The CG variant mounts a 0.2-liter cup directly on the gun, so there is no injector, no powder hose, and no hopper to clean — a color change is literally swapping the cup, about 15 seconds. That makes it ideal for color sampling, lab and R&D work, touch-up, and very small batches. Its 200 g/min output is lower than the injector-fed gun, so it is not the tool for production volumes.

Question 4

Is the PEM-X1 a corona or tribo gun?

Accepted Answer

The PEM-X1 is a corona gun — it charges powder with a 100 kV high-power cascade at the electrode. For tribo (friction) charging, Wagner's legacy companion was the PEM T3, which appeared alongside the PEM-X1 in kits like the Sprint X CT 3L for two-coat applications. The EPG and WACON controllers can drive both gun types, with current displays scaled for each.

Question 5

What spare parts should I keep on hand for the PEM-X1?

Accepted Answer

Electrode holders and nozzle inserts are the primary wear items, followed by the powder tube and gun cable. CET stocks the full X1 parts matrix — use the PEM-X1 spare parts picker on our store to identify parts by exploded-diagram position, or call 586-210-0555 with your gun's configuration.

Question 6

Can I buy the PEM-X1 without a complete system?

Accepted Answer

Yes. The gun is sold on its own with a flat or round spray nozzle setup, or as a spray pack (2467124) that adds a WACON Sprint 2 X control unit, PI-F1 injector, and hose set — the middle path for shops that already have powder supply and booth infrastructure but want current-generation control.

Model	Configuration	Controller	Output
2322587	PEM-X1 with flat spray (wide) nozzle — electrode holder and protective wedge included	—	450 g/min	Shop →
2335844	PEM-X1 with round spray nozzle and deflector cone — for 3D parts and profiles	—	450 g/min	Shop →
2467124	PEM-X1 Spray Pack — gun + WACON Sprint 2 X control unit + PI-F1 injector + hose set	WACON Sprint 2 X	450 g/min	Shop →
2322588	PEM-X1 CG cup gun — 0.2L cup on the gun body, flat spray nozzle, gun hook included	—	200 g/min	Shop →

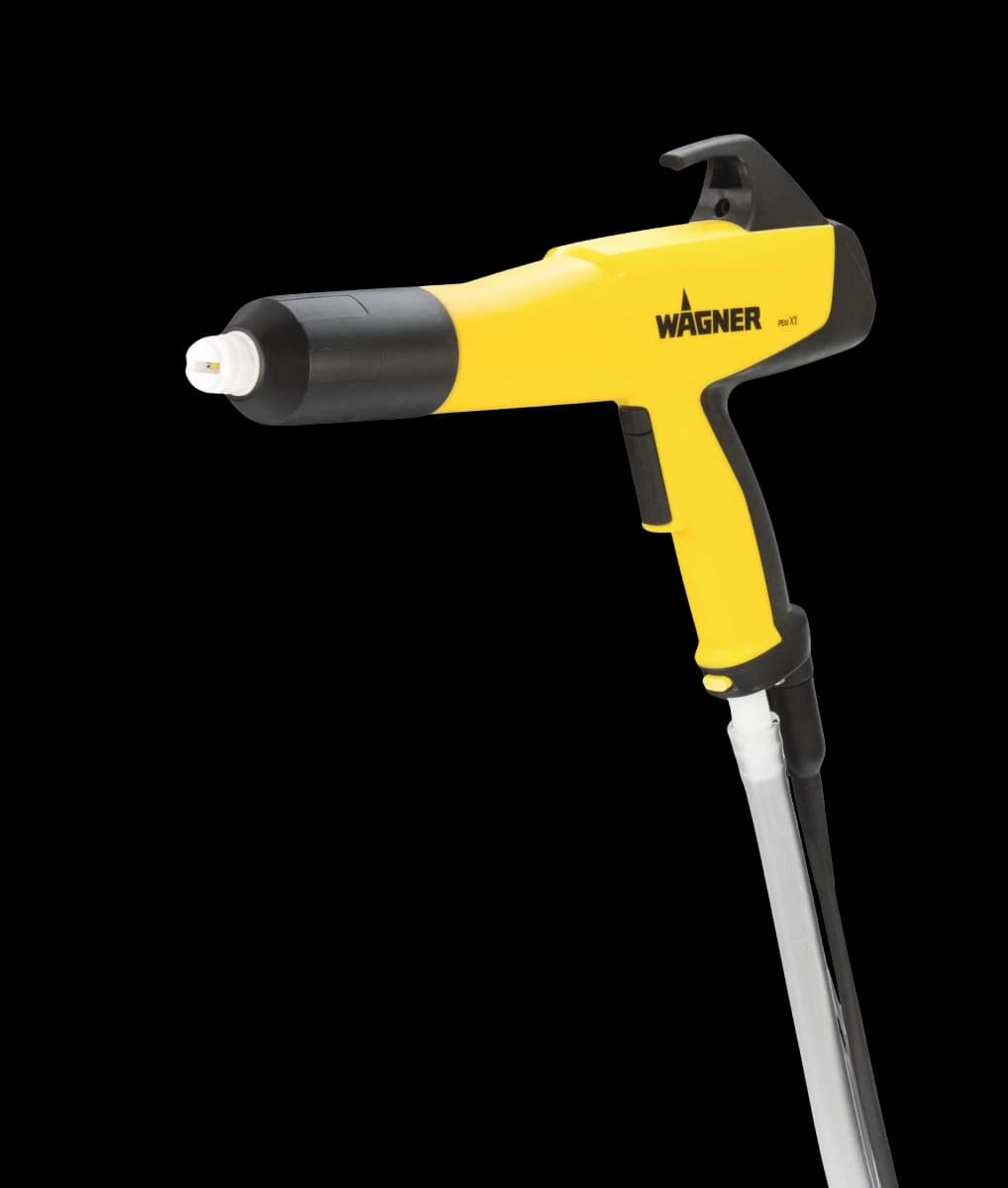

Wagner PEM-X1 Manual Powder Gun

Manual Powder Spray Gun (Corona)

Injector feed (box, hopper) or cup (CG variant)

Model Selection Guide

Technical Specifications
