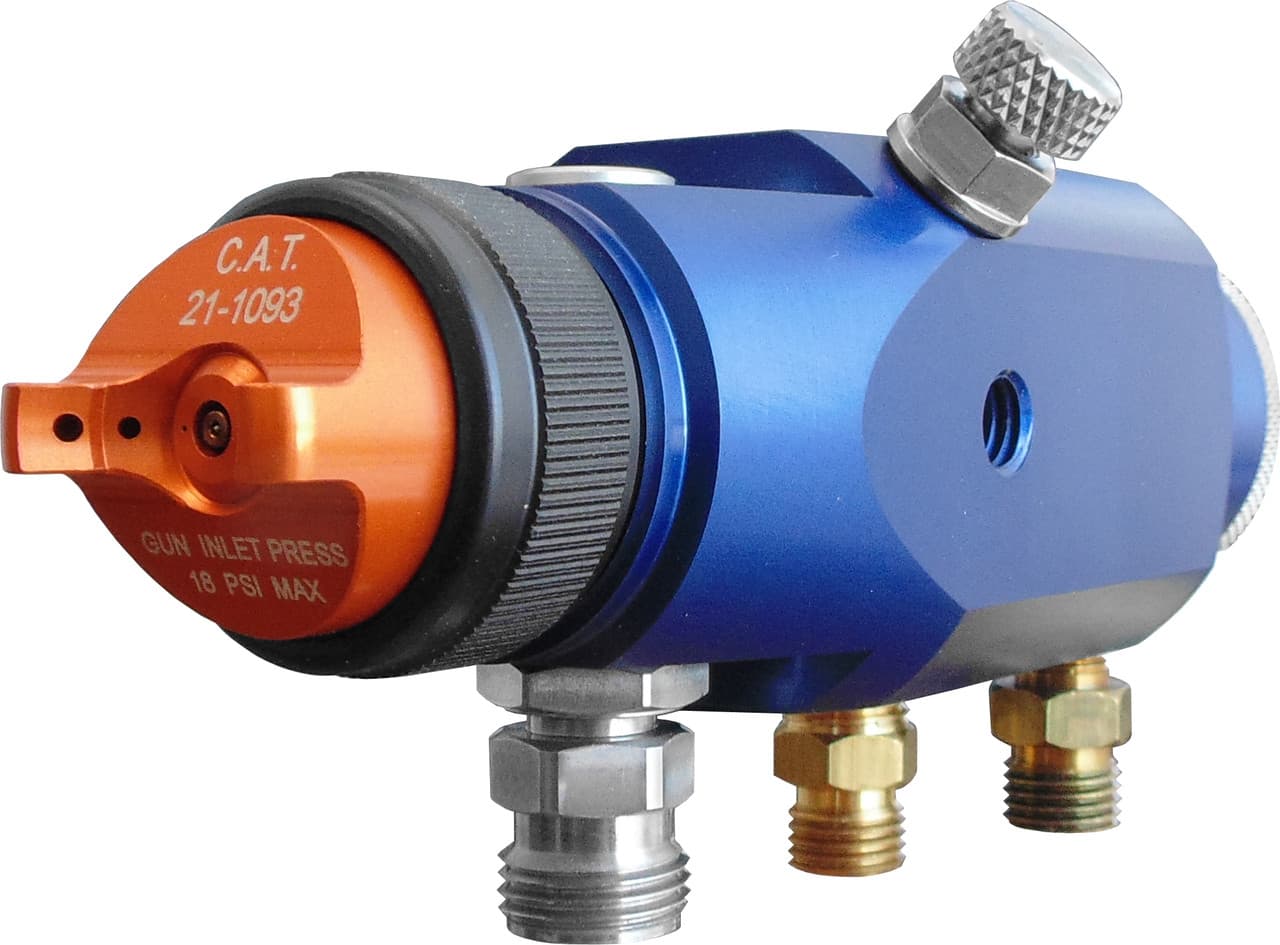

C.A. Technologies AutoCAT Automatic Spray Gun
C.A. Technologies AutoCAT — Automatic Spray Gun for Reciprocators, Robots & Fixed-Mount Lines
The C.A. Technologies AutoCAT is CAT's automatic (machine-mount) spray gun for reciprocators, flat-line machines, robots, and fixed automation. It shares the AutoCAT air cap and fluid nozzle technology with the handheld line, so the conventional (C) and compliant HVLP (H) atomization and tip selection you know from the manual guns carry straight onto the automation. The 100-series covers general automatic finishing; the higher-output 300-series moves more material for production lines and heavier coatings. The gun mounts left, right, or bottom via the included rod and is plumbed for cylinder air (gun open/close), atomizing air, fan air, and fluid, with recirculation versions available for keeping material moving in a closed loop. Stainless fluid passages make it waterborne-ready, and it runs the same fluid tips and needles as the handheld AutoCAT/Jaguar platform.
Specifications
Type
Automatic (machine-mount) spray gun — conventional / HVLP
Feed
Pressure feed (tank or pump) with cylinder open/close
Body
Forged aluminum
Fluid Path
Stainless steel
Air Inlet
Cylinder, atomizing & fan air ports
Nozzle Range
0.5 mm – 1.6 mm
Key Features
Automatic machine-mount gun for reciprocators, robots, flat-line & fixed automation
Conventional (C) and compliant HVLP (H) atomization; 100 and higher-output 300 series
Mounts left, right, or bottom via the included mounting rod
Separate cylinder, atomizing, and fan air plus fluid
full automation control
Recirculation versions available for closed-loop material handling
Shares AutoCAT/Jaguar fluid tips & needles; stainless fluid path for waterborne
Model Selection Guide
Choose the AutoCAT by atomization (C = conventional, H = compliant HVLP) and output series (100 standard, 300 higher output). Specify mounting orientation and whether you need a recirculation version. Match the cap, tip, and needle to your material. Call CET at 586-210-0555 for automation setup.
| Model | Tip Sizes | Pressure | Material Compatibility | |
|---|---|---|---|---|
| AutoCAT 100C | 0.6–1.8 mm | Conventional | General automatic finishing — solvent/waterborne, lacquers, primers, stains | Shop → |
| AutoCAT 100H | 0.5 mm+ | HVLP — 15 PSI class (compliant) | Compliant automatic HVLP — fine finish at low air demand | Shop → |
| AutoCAT 300C | 0.8–1.6 mm | Conventional — higher output | Higher-output conventional automatic — primers, high-solids, production | Shop → |
| AutoCAT 300H | 0.8 mm+ | HVLP — 40 PSI max cap, 13.5 SCFM | Higher-output compliant automatic — high-volume production | Shop → |
Technical Specifications
- Gun Type
- Automatic (machine-mount) spray gun — conventional / HVLP
- Feed Type
- Pressure feed (tank or pump) with cylinder open/close
- Gun Body
- Forged aluminum
- Fluid Path
- Stainless steel
- Air Inlet
- Cylinder, atomizing & fan air ports
- Fluid Nozzle Range
- 0.5 mm – 1.6 mm
Replacement Parts
Genuine C.A. Technologies replacement parts in stock at CET. Part numbers without a shop link are available by phone — call or text 586-210-0555.
Air Caps
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 21-200 | 100C Internal Mix Air Cap Replaces Binks 200 Air Cap | — | Shop → |
| 21-1090 | Air Cap Series 100H HVLP | — | Shop → |
| 21-1091 | Air Cap Series 100H HVLP | — | Shop → |
| 21-1092 | Air Cap Series 100H HVLP | — | Shop → |
| 21-1093 | Air Cap Series 100H HVLP | — | Shop → |
| 21-1094 | Air Cap Series 100H HVLP | — | Shop → |
| 21-1095 | Air Cap Series 100H HVLP | — | Shop → |
| 21-1097 | Air Cap Series 100H HVLP | — | Shop → |
| 21-1195 | Air Cap Series 100H HVLP | — | |
| 21-1197 | Air Cap Series 100H HVLP | — | Shop → |
| 21-2166 | Series 100C Conventional Air Cap 0 6 1 8 5 SCFM | — | |
| 21-2167 | Series 100C Conventional Air Cap 2 5 14 5 SCFM Pressure | — | Shop → |
| 21-2168 | Series 100C Conventional Air Cap 2 8 14 SCFM Pressure | — | Shop → |
| 21-2201 | Air Cap 201 Internal Mix | — | Shop → |
| 21-2263 | Series 100C Conventional Air Cap 0 6 1 8 14 SCFM Pressure | — | Shop → |
| 21-2266 | Series 100C Conventional Air Cap 0 6 1 8 16 2 SCFM Pressure Teflon Coated 21 2266 3t | — | Shop → |
| 21-2266T | 2266 Air Cap Teflon | — | Shop → |
| 21-2267 | Series 100C Conventional Air Cap 2 5 15 SCFM Pressure | — | Shop → |
| 21-2268 | Series 100C Conventional Air Cap Siphon | — | Shop → |
| 21-2366 | Series 100C Conventional Air Cap 0 6 1 8 12 SCFM Siphon | — | Shop → |
| 21-2466 | Series 100C Conventional Air Cap 0 6 1 8 15 SCFM Siphon | — | Shop → |
| 21-2467 | Series 100C Conventional Air Cap 2 2 15 SCFM | — | Shop → |
| 23-1008 | Series 300H HVLP Air Cap 8 | — | Shop → |
| 23-1010 | Series 300H HVLP Air Cap (1.0 mm) | — | Shop → |
| 23-1012 | Series 300H HVLP Air Cap (1.2 mm) | — | Shop → |
| 23-1013 | Series 300H HVLP Air Cap (1.3 mm) | — | Shop → |
| 23-1014 | Series 300H HVLP Air Cap (1.4 mm) | — | Shop → |
| 23-1015 | Series 300H HVLP Air Cap (1.5 mm) | — | Shop → |
| 23-1017 | Series 300H HVLP Air Cap (1.7 mm) | — | Shop → |
| 23-1019 | Series 300H HVLP Air Cap (1.9 mm) | — | Shop → |
| 23-1022 | Series 300H HVLP Air Cap (2.2 mm) | — | Shop → |
| 23-2010 | Series 300C Conventional Air Cap (1.0 mm) | — | Shop → |
| 23-2013 | Series 300C Conventional Air Cap (1.3 mm) | — | Shop → |
| 23-2014 | Series 300C Conventional Air Cap (1.4 mm) | — | Shop → |
| 23-2016 | Series 300C Conventional Air Cap (1.6 mm) | — | Shop → |
| 60-12C | Air Cap Adapter 100C USA Version | — | Shop → |
| 60-12H | Air Cap Adapter 100H USA Version | — | Shop → |
| 60-32C | Air Cap Adapter 300C USA Version | — | Shop → |
| 60-34H | Air Cap Adapter | — | Shop → |
Fluid Nozzles & Tips
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 31-0205 | Material Nozzle Series 100H 5mm | — | Shop → |
| 31-0208 | Material Nozzle Series 100H 8mm | — | Shop → |
| 31-0210 | Material Nozzle Series 100H 1.0mm | — | Shop → |
| 31-0212 | Material Nozzle Series 100H 1.2mm | — | Shop → |
| 31-0213 | Material Nozzle Series 100H 1.3mm | — | Shop → |
| 31-0214 | Material Nozzle Series 100H 1.4mm | — | Shop → |
| 31-0215 | Material Nozzle Series 100H 1.5mm | — | Shop → |
| 31-0216 | Material Nozzle Series 100H 1.6mm | — | Shop → |
| 31-0217 | Material Nozzle Series 100H 1.7mm | — | Shop → |
| 31-0417 | Series 100H F Replacement Orifice | — | Shop → |
| 31-0606 | Series 100C Replacement Orifice 0.6mm | — | Shop → |
| 31-0607 | Series 100C Replacement Orifice 0.7mm | — | Shop → |
| 31-0610 | Series 100C Replacement Orifice 1.0mm | — | Shop → |
| 31-0612 | Series 100C Replacement Orifice 1.2mm | — | Shop → |
| 31-0613 | Series 100C Replacement Orifice 1.3mm | — | Shop → |
| 31-0615 | Series 100C Replacement Orifice 1.5mm | — | Shop → |
| 31-0618 | Series 100C Replacement Orifice 1.8mm | — | Shop → |
| 31-0618V | Series 100C Carbide Replacement Orifice 1.8mm | — | Shop → |
| 31-0622 | Series 100C Replacement Orifice 2.2mm | — | Shop → |
| 31-0622V | Series 100C Carbide Replacement Orifice 2.2mm | — | Shop → |
| 31-0628 | Series 100C Replacement Orifice | — | Shop → |
| 31-0628V | Series 100C Carbide Replacement Orifice 2.8mm | — | Shop → |
| 31-1201 | Series 100H Fluid Nozzle Body Only | — | Shop → |
| 31-2201 | Series 100C Fluid Nozzle Body Only | — | Shop → |
| 33-0208 | Series 300H Replacement Orifice 8 | — | Shop → |
| 33-0210 | Series 300H Replacement Orifice (1.0 mm) | — | Shop → |
| 33-0212 | Series 300H Replacement Orifice (1.2 mm) | — | Shop → |
| 33-0213 | Series 300H Replacement Orifice (1.3 mm) | — | Shop → |
| 33-0214 | Series 300H Replacement Orifice (1.4 mm) | — | Shop → |
| 33-0215 | Series 300H Replacement Orifice (1.5 mm) | — | Shop → |
| 33-0217 | Series 300H Replacement Orifice (1.7 mm) | — | Shop → |
| 33-0219 | Series 300H Replacement Orifice (1.9 mm) | — | Shop → |
| 33-0222 | Series 300H Replacement Orifice (2.2 mm) | — | Shop → |
| 33-0608 | Series 300C Replacement Orifice 8 | — | Shop → |
| 33-0610 | Series 300C Replacement Orifice (1.0 mm) | — | Shop → |
| 33-0613 | Series 300C Replacement Orifice (1.3 mm) | — | Shop → |
| 33-0614 | Series 300C Replacement Orifice (1.4 mm) | — | Shop → |
| 33-0616 | Series 300C Replacement Orifice (1.6 mm) | — | Shop → |
| 33-1201 | Series 300H Fluid Nozzle Body Only | — | Shop → |
| 33-2201 | Series 300C Fluid Nozzle Body Only | — | Shop → |
| 60-L11C | Nozzle Body Carrier For Ca Tech Spray Guns | — | Shop → |
| 60-L11H | Fluid Nozzle Carrier L100h | — | Shop → |
| 60-L31C | Fluid Nozzle Carrier USA Version | — | Shop → |
| 60-L31H | Fluid Nozzle Carrier HVLP USA Version | — | Shop → |
| 61-1005 | Nozzle Gasket | — | Shop → |
Fluid Needles
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 40-A308 | Series 300H 300C Autocat Needle Assembly For 0.8mm 308 | — | Shop → |
| 40-A310 | Series 300H 300C Autocat Needle Assembly For 1.0mm 310 | — | Shop → |
| 40-A312 | Series 300H 300C Autocat Needle Assembly For 1.2mm 312 | — | Shop → |
| 40-A313 | Series 300H 300C Autocat Needle Assembly For 1.3mm 313 | — | Shop → |
| 40-A314 | Series 300H 300C Autocat Needle Assembly For 1.4mm 314 | — | Shop → |
| 40-A315 | Series 300H 300C Autocat Needle Assembly HVLP 1.5mm Conv 1.6mm | — | Shop → |
| 40-A317 | Series 300H Autocat Needle Assembly For 1.7mm 317 | — | Shop → |
| 40-A319 | Series 300H Autocat Needle Assembly For 1.9mm 319 | — | Shop → |
| 40-A322 | Series 300H Autocat Needle Assembly For 2.2mm 322 | — | Shop → |
| 60-613 | Needle Return Spring | — | Shop → |
| 60-1400 | Needle Seal Cartridge L100c | — | Shop → |
Fan & Air Control
Triggers, Springs & Seals
Service & Repair Parts
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 53-551 | Air Fitting 1 8 NPT X 1 4 NPS | — | Shop → |
| 53-552 | Air Fitting 1 4 NPT X 1 4 NPS | — | |
| 60-126 | Fluid Inlet USA Version | — | Shop → |
| 60-128 | Locknut Fluid Inlet USA Version | — | Shop → |
| 60-601 | End Cap | — | Shop → |
| 60-602 | Piston | — | Shop → |
| 60-608 | Fluid Control Knob | — | Shop → |
| 60-612 | Lock Nut | — | Shop → |
| 60-614 | Mounting Rod | — | Shop → |
C.A. Technologies AutoCAT Automatic Spray Gun Documents
View All →C.A. Technologies AutoCAT 100C
AutoCAT · AutoCAT 100C
C.A. Technologies service manual for the AutoCAT (models AutoCAT 100C). 5-page PDF — view online or download free from CET.
C.A. Technologies AutoCAT 100H
AutoCAT · AutoCAT 100H
C.A. Technologies service manual for the AutoCAT (models AutoCAT 100H). 5-page PDF — view online or download free from CET.
C.A. Technologies AutoCAT 300C
AutoCAT · AutoCAT 300C
C.A. Technologies service manual for the AutoCAT 300C (models AutoCAT 300C). 5-page PDF — view online or download free from CET.
C.A. Technologies AutoCAT 300H
AutoCAT · AutoCAT 300H
C.A. Technologies service manual for the AutoCAT (models AutoCAT 300H). 5-page PDF — view online or download free from CET.
