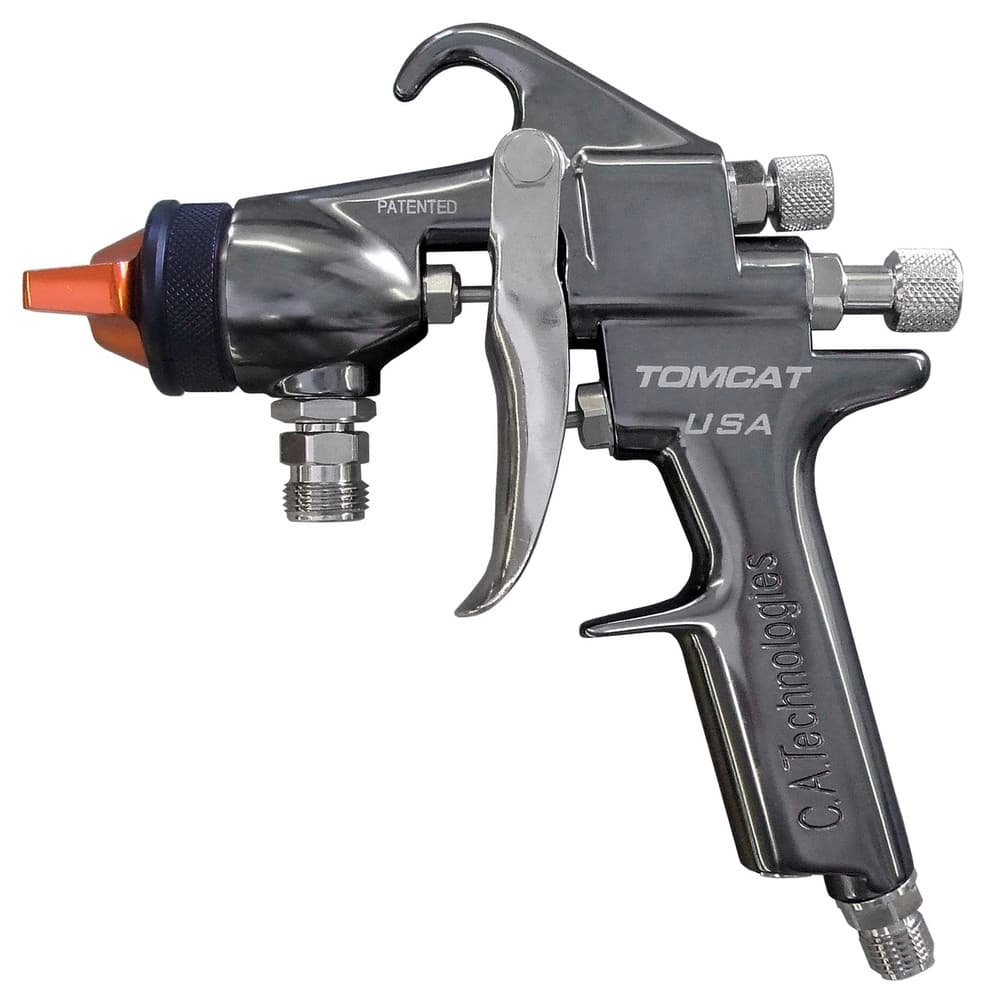

C.A. Technologies Tomcat Spray Gun
C.A. Technologies Tomcat — Economical Conventional Spray Gun for General Finishing
The C.A. Technologies Tomcat is an economical, general-purpose conventional spray gun for everyday finishing. The 100C build runs the same proven 21-2166/21-2266/21-2366 conventional air caps across the 0.6–1.8 mm tip range with fluid nozzles from 0.6 mm in 17-4PH and 300-series stainless construction. It's the value choice when you need a dependable full-size conventional gun for production, maintenance, and general shop work without paying for premium fine-finish features. Stainless fluid passages keep it waterborne-ready, and it shares the broad CAT air cap and fluid nozzle lineup.
Specifications
Type
Economical conventional spray gun
Feed
Siphon / pressure feed
Body
Forged aluminum
Fluid Path
17-4PH & 300-series stainless steel
Air Inlet
1/4" NPS (m)
Nozzle Range
0.6 mm – 1.8 mm
Key Features
Economical full-size conventional gun for general finishing
0.6–1.8 mm tip range on 21-2166/2266/2366 conventional caps
17-4PH and 300-series stainless fluid construction
Dependable value choice for production and maintenance work
Shares the broad CAT air cap & fluid nozzle lineup
Stainless fluid path
waterborne ready
Model Selection Guide
The Tomcat 100C covers general conventional finishing across the 0.6–1.8 mm tip range. Match the cap, tip, and needle to your material. Call CET at 586-210-0555.
| Model | Tip Sizes | Pressure | Material Compatibility | |
|---|---|---|---|---|
| Tomcat 100C | 0.6–1.8 mm | Conventional | General finishing — solvent/waterborne paints, primers, sealers, stains | Shop → |
Technical Specifications
- Gun Type
- Economical conventional spray gun
- Feed Type
- Siphon / pressure feed
- Gun Body
- Forged aluminum
- Fluid Path
- 17-4PH & 300-series stainless steel
- Air Inlet
- 1/4" NPS (m)
- Fluid Nozzle Range
- 0.6 mm – 1.8 mm
Replacement Parts
Genuine C.A. Technologies replacement parts in stock at CET. Part numbers without a shop link are available by phone — call or text 586-210-0555.
Air Caps
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 21-200 | 100C Internal Mix Air Cap Replaces Binks 200 Air Cap | — | Shop → |
| 21-2166 | Series 100C Conventional Air Cap 0 6 1 8 5 SCFM | — | |
| 21-2167 | Series 100C Conventional Air Cap 2 5 14 5 SCFM Pressure | — | Shop → |
| 21-2168 | Series 100C Conventional Air Cap 2 8 14 SCFM Pressure | — | Shop → |
| 21-2201 | Air Cap 201 Internal Mix | — | Shop → |
| 21-2263 | Series 100C Conventional Air Cap 0 6 1 8 14 SCFM Pressure | — | Shop → |
| 21-2266 | Series 100C Conventional Air Cap 0 6 1 8 16 2 SCFM Pressure Teflon Coated 21 2266 3t | — | Shop → |
| 21-2266T | 2266 Air Cap Teflon | — | Shop → |
| 21-2267 | Series 100C Conventional Air Cap 2 5 15 SCFM Pressure | — | Shop → |
| 21-2268 | Series 100C Conventional Air Cap Siphon | — | Shop → |
| 21-2366 | Series 100C Conventional Air Cap 0 6 1 8 12 SCFM Siphon | — | Shop → |
| 21-2466 | Series 100C Conventional Air Cap 0 6 1 8 15 SCFM Siphon | — | Shop → |
| 21-2467 | Series 100C Conventional Air Cap 2 2 15 SCFM | — | Shop → |
Fluid Nozzles & Tips
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 31-0606 | Series 100C Replacement Orifice 0.6mm | — | Shop → |
| 31-0607 | Series 100C Replacement Orifice 0.7mm | — | Shop → |
| 31-0610 | Series 100C Replacement Orifice 1.0mm | — | Shop → |
| 31-0612 | Series 100C Replacement Orifice 1.2mm | — | Shop → |
| 31-0613 | Series 100C Replacement Orifice 1.3mm | — | Shop → |
| 31-0615 | Series 100C Replacement Orifice 1.5mm | — | Shop → |
| 31-0618 | Series 100C Replacement Orifice 1.8mm | — | Shop → |
| 31-0618V | Series 100C Carbide Replacement Orifice 1.8mm | — | Shop → |
| 31-0622 | Series 100C Replacement Orifice 2.2mm | — | Shop → |
| 31-0622V | Series 100C Carbide Replacement Orifice 2.2mm | — | Shop → |
| 31-0628 | Series 100C Replacement Orifice | — | Shop → |
| 31-0628V | Series 100C Carbide Replacement Orifice 2.8mm | — | Shop → |
Fluid Needles
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 40-1107 | Series 100C Needle Assembly For 6mm 7mm 107 | — | Shop → |
| 40-1110 | Series 100C Needle Assembly For 1.0mm 1.3mm 110 | — | Shop → |
| 40-1115 | Series 100C Needle Assembly For 1.5mm 1.8mm 115 | — | Shop → |
| 40-1122 | Series 100C Needle Assembly For 2.2mm 122 | — | Shop → |
| 40-1128 | Series 100C Needle Assembly For 2.8mm 128 | — | Shop → |
| 40-6201 | Carbide Tip Needle For Lynx 100C | — | Shop → |
| 60-204 | Needle Return Spring Lynx | — | Shop → |
Fan & Air Control
Triggers, Springs & Seals
C.A. Technologies Tomcat Spray Gun Documents
View All →C.A. Technologies Tomcat 100C
Tomcat · Tomcat 100C
C.A. Technologies service manual for the Tomcat (models Tomcat 100C). 5-page PDF — view online or download free from CET.
