What is the Techline T3 designed to spray?

High-build materials — primers, surfacers, and heavier-bodied industrial coatings. Its large 1.3–2.2 mm tips and higher 45 PSI inlet ceiling give it the fluid speed to move thick material that would choke a fine-finish gun, while keeping HVLP transfer efficiency.

Why does the T3 run a higher inlet pressure than other CAT HVLP guns?

High-build coatings need more fluid speed to atomize properly. The T3's 45 PSI maximum gun-inlet ceiling delivers that, where the fine-finish CAT guns are held to lower compliant pressures suited to thin topcoats. It's still an HVLP gun — the higher ceiling matches the heavier material.

Can the Techline T3 spray thin topcoats too?

It can, but it's optimized for high-build work. For thin stains, sealers, and fine topcoats you'll get a better finish from a fine-finish gun like the CPR-FE, FE-Line, or CAT SLP. Use the T3 where build and material speed matter most.

C.A. Technologies

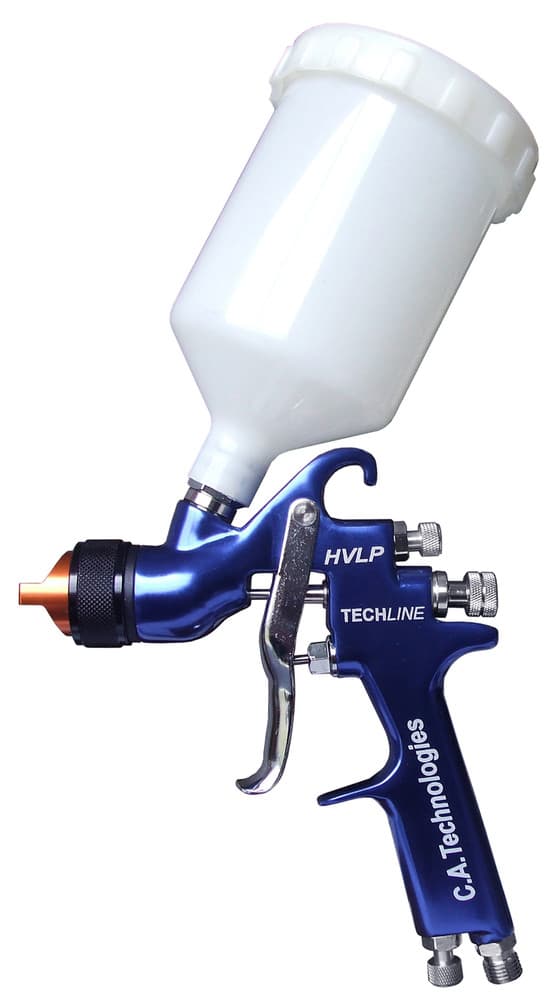

C.A. Technologies Techline T3 Spray Gun

C.A. Technologies Techline T3 — HVLP Gravity Gun for Primers & High-Build Coatings

The C.A. Technologies Techline T3 is an HVLP gravity spray gun built for primers, high-build coatings, and heavier-bodied industrial materials. It carries a large 1.3–2.2 mm fluid tip range (33-0213 to 33-0222 tips with 40-P13xx needles) on matched 23-10xx air caps, and runs a higher 45 PSI maximum gun-inlet pressure ceiling than the fine-finish CAT guns — giving it the fluid speed to move thick, high-build material while staying HVLP. That larger tip range and higher ceiling point the T3 squarely at surfacers, high-build primers, and heavier industrial coatings rather than thin topcoats. Stainless fluid passages keep it waterborne-ready.

Shop Now View Manual

Specifications

Type

HVLP gravity spray gun (high-build)

Feed

Gravity feed

Body

Forged aluminum

Fluid Path

Stainless steel

Max Air

45 PSI max gun inlet

Air Inlet

1/4" NPS (m)

Nozzle Range

1.3 mm – 2.2 mm

Key Features

HVLP gravity gun for primers, surfacers, and high-build coatings

Large 1.3–2.2 mm tip range (33-0213 to 33-0222, 40-P13xx needles)

Higher 45 PSI max gun-inlet ceiling for fluid speed on thick material

Matched 23-10xx HVLP air caps

Stainless fluid path

waterborne ready

Shares the CAT fluid nozzle lineup

Model Selection Guide

The Techline T3 is built for high-build primers and heavier-bodied materials — choose a tip from 1.3 mm to 2.2 mm to match the build of your coating. Call CET at 586-210-0555.

Model	Tip Sizes	Pressure	Material Compatibility
Techline T3	1.3–2.2 mm	HVLP gravity — 45 PSI max cap	High-build primers, surfacers, heavier industrial coatings	Shop →

Technical Specifications

Gun Type: HVLP gravity spray gun (high-build)
Feed Type: Gravity feed
Gun Body: Forged aluminum
Fluid Path: Stainless steel
Max Air Pressure: 45 PSI max gun inlet
Air Inlet: 1/4" NPS (m)
Fluid Nozzle Range: 1.3 mm – 2.2 mm

Replacement Parts

Genuine C.A. Technologies replacement parts in stock at CET. Part numbers without a shop link are available by phone — call or text 586-210-0555.

Air Caps

Part #	Description	Qty / Size
23-1010	Series 300H HVLP Air Cap (1.0 mm)	—	Shop →
23-1013	Series 300H HVLP Air Cap (1.3 mm)	—	Shop →
23-1014	Series 300H HVLP Air Cap (1.4 mm)	—	Shop →
23-1015	Series 300H HVLP Air Cap (1.5 mm)	—	Shop →
23-1017	Series 300H HVLP Air Cap (1.7 mm)	—	Shop →
23-1019	Series 300H HVLP Air Cap (1.9 mm)	—	Shop →
23-1022	Series 300H HVLP Air Cap (2.2 mm)	—	Shop →

Fluid Nozzles & Tips

Part #	Description	Qty / Size
33-0210	Series 300H Replacement Orifice (1.0 mm)	—	Shop →
33-0213	Series 300H Replacement Orifice (1.3 mm)	—	Shop →
33-0214	Series 300H Replacement Orifice (1.4 mm)	—	Shop →
33-0215	Series 300H Replacement Orifice (1.5 mm)	—	Shop →
33-0217	Series 300H Replacement Orifice (1.7 mm)	—	Shop →
33-0219	Series 300H Replacement Orifice (1.9 mm)	—	Shop →
33-0222	Series 300H Replacement Orifice (2.2 mm)	—	Shop →
33-1201	Series 300H Fluid Nozzle Body Only	—	Shop →

Repair Kits

Part #	Description	Qty / Size
10-111	Techline Tool Kit	—	Shop →
