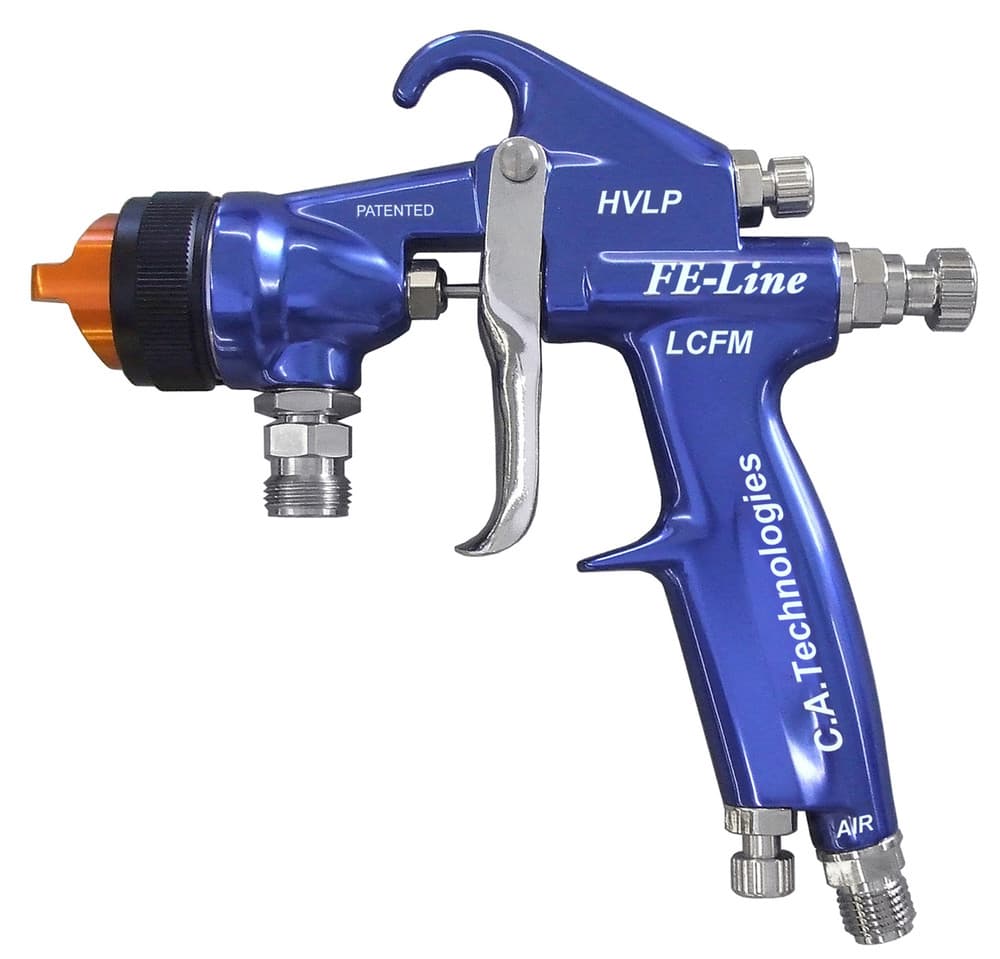

C.A. Technologies FE-Line Fine Finish Spray Gun
C.A. Technologies FE-Line — Lightweight HVLP Fine-Finish Spray Gun, Standard & Low-CFM
The C.A. Technologies FE-Line is a lightweight HVLP fine-finish spray gun built for smooth topcoats and detail work. The standard FE-Line Fine Finish runs 23-1308/23-1310 pressure-fed caps with fluid tips from 0.8 mm and 40-18xx fine-finish needles for compliant, high-quality finishes; the FE-Line LCFM (low-CFM) build runs 21-1090/21-1091 caps at just 15 PSI and 6–8 SCFM, pairing HVLP compliance with minimal air demand for shops with limited compressor capacity. Both share the CAT fluid-tip lineup and stainless fluid passages, making the FE-Line a compact, efficient choice for automotive refinish, cabinet, and fine wood finishing.
Specifications
Type
Lightweight HVLP fine-finish spray gun
Feed
Gravity / pressure feed (build-dependent)
Body
Forged aluminum (lightweight)
Fluid Path
Stainless steel
Air Inlet
1/4" NPS (m)
Nozzle Range
0.5 mm – 1.3 mm
Key Features
Lightweight HVLP gun tuned for fine-finish topcoats and detail work
Standard Fine Finish build (23-1308/23-1310 caps, 40-18xx needles)
LCFM low-CFM build runs 15 PSI at just 6–8 SCFM for small compressors
Compliant HVLP transfer efficiency at the cap
Shared CAT fluid-tip lineup; stainless fluid path for waterborne
Standard CAT Pack tip/needle/cap sets available
Model Selection Guide
Choose the standard Fine Finish for the best compliant finish on adequate air, or the LCFM if your compressor is limited (it needs only 6–8 SCFM). Match the cap, tip, and needle to your topcoat. Call CET at 586-210-0555.
Technical Specifications
- Gun Type
- Lightweight HVLP fine-finish spray gun
- Feed Type
- Gravity / pressure feed (build-dependent)
- Gun Body
- Forged aluminum (lightweight)
- Fluid Path
- Stainless steel
- Air Inlet
- 1/4" NPS (m)
- Fluid Nozzle Range
- 0.5 mm – 1.3 mm
Replacement Parts
Genuine C.A. Technologies replacement parts in stock at CET. Part numbers without a shop link are available by phone — call or text 586-210-0555.
Air Caps
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 21-1001 | Series 100H Air Cap Retaining Ring | — | Shop → |
| 21-1090 | Air Cap Series 100H HVLP | — | Shop → |
| 21-1091 | Air Cap Series 100H HVLP | — | Shop → |
| 21-1093 | Air Cap Series 100H HVLP | — | Shop → |
| 21-1094 | Air Cap Series 100H HVLP | — | Shop → |
| 23-1308 | Series SLP HVLP Air Cap (0.8 mm) | — | Shop → |
| 23-1310 | Series SLP HVLP Air Cap (1.0 mm) | — | Shop → |
| 23-1312 | Series SLP HVLP Air Cap (1.2 mm) | — | Shop → |
| 23-1313 | Series SLP HVLP Air Cap (1.3 mm) | — | Shop → |
| 23-1314 | Series SLP HVLP Air Cap (1.4 mm) | — | Shop → |
| 23-1315 | Series SLP HVLP Air Cap (1.5 mm) | — | Shop → |
| 23-1317 | Series SLP HVLP Air Cap (1.7 mm) | — | Shop → |
Fluid Nozzles & Tips
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 31-0205 | Material Nozzle Series 100H 5mm | — | Shop → |
| 31-0208 | Material Nozzle Series 100H 8mm | — | Shop → |
| 31-0210 | Material Nozzle Series 100H 1.0mm | — | Shop → |
| 31-0212 | Material Nozzle Series 100H 1.2mm | — | Shop → |
| 31-0213 | Material Nozzle Series 100H 1.3mm | — | Shop → |
| 31-0214 | Material Nozzle Series 100H 1.4mm | — | Shop → |
| 31-0215 | Material Nozzle Series 100H 1.5mm | — | Shop → |
| 31-0216 | Material Nozzle Series 100H 1.6mm | — | Shop → |
| 31-0217 | Material Nozzle Series 100H 1.7mm | — | Shop → |
| 33-0208 | Series 300H Replacement Orifice 8 | — | Shop → |
| 33-0210 | Series 300H Replacement Orifice (1.0 mm) | — | Shop → |
| 33-0212 | Series 300H Replacement Orifice (1.2 mm) | — | Shop → |
| 33-0213 | Series 300H Replacement Orifice (1.3 mm) | — | Shop → |
| 33-0214 | Series 300H Replacement Orifice (1.4 mm) | — | Shop → |
| 33-0215 | Series 300H Replacement Orifice (1.5 mm) | — | Shop → |
| 33-0217 | Series 300H Replacement Orifice (1.7 mm) | — | Shop → |
| 98-0104 | Orifice Socket 3 8 X 1 4 Dr | — | Shop → |
Fluid Needles
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 40-1801 | Needle Assembly For Fe Lcfm | — | Shop → |
| 40-1808 | 0.8mm Needle Assembly For Fe Ff | — | Shop → |
| 40-1810 | 1 0 1.2mm Needle Assembly For Fe Ff | — | Shop → |
| 40-1813 | 1 3 1.4mm Needle Assembly For Fe Ff | — | Shop → |
| 40-1815 | 1.5mm Needle Assembly For Fe Ff | — | Shop → |
| 40-1817 | 1.7mm Needle Assembly For Fe Ff | — | Shop → |
| 60-211 | Needle Return Spring For Fe Line And Tommygun | — | Shop → |
| 60-1329 | Needle Seal Cartridge For Fe Line And Tommygun | — | Shop → |
Cups, Lids & Liners
Fan & Air Control
Triggers, Springs & Seals
Service & Repair Parts
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 21-1092 | Same CFM As 92p Order 21 1092 G | — | Shop → |
| 60-35 | Head Insert For Fe Fine Finish | — | Shop → |
| 60-36 | Head Insert For Fe Lcfm | — | Shop → |
| 60-104 | Air Inlet Fitting | — | Shop → |
| 60-126 | Fluid Inlet USA Version | — | Shop → |
| 60-128 | Locknut Fluid Inlet USA Version | — | Shop → |
| 60-1312 | Fluid Control Knob For Fe Line And Tommygun | — | Shop → |
| 60-1315 | Shoulder Screw For Bobcat Air Assisted Airless Fe Line And Tommygun 2 Per | — | Shop → |
| 60-8001 | Multi Purpose Wrench Ca Technologies Spray Gun Spare Parts | — | Shop → |
| 98-0112 | Small Ratchet Wrench | — | Shop → |
| 98-0113 | Gun Brush | — | Shop → |
C.A. Technologies FE-Line Fine Finish Spray Gun Documents
View All →C.A. Technologies FE-Line Fine Finish
FE-Line
C.A. Technologies service manual for the FE-Line. 5-page PDF — view online or download free from CET.
C.A. Technologies FE-Line LCFM
FE-Line LCFM
C.A. Technologies service manual for the FE-Line LCFM. 5-page PDF — view online or download free from CET.
