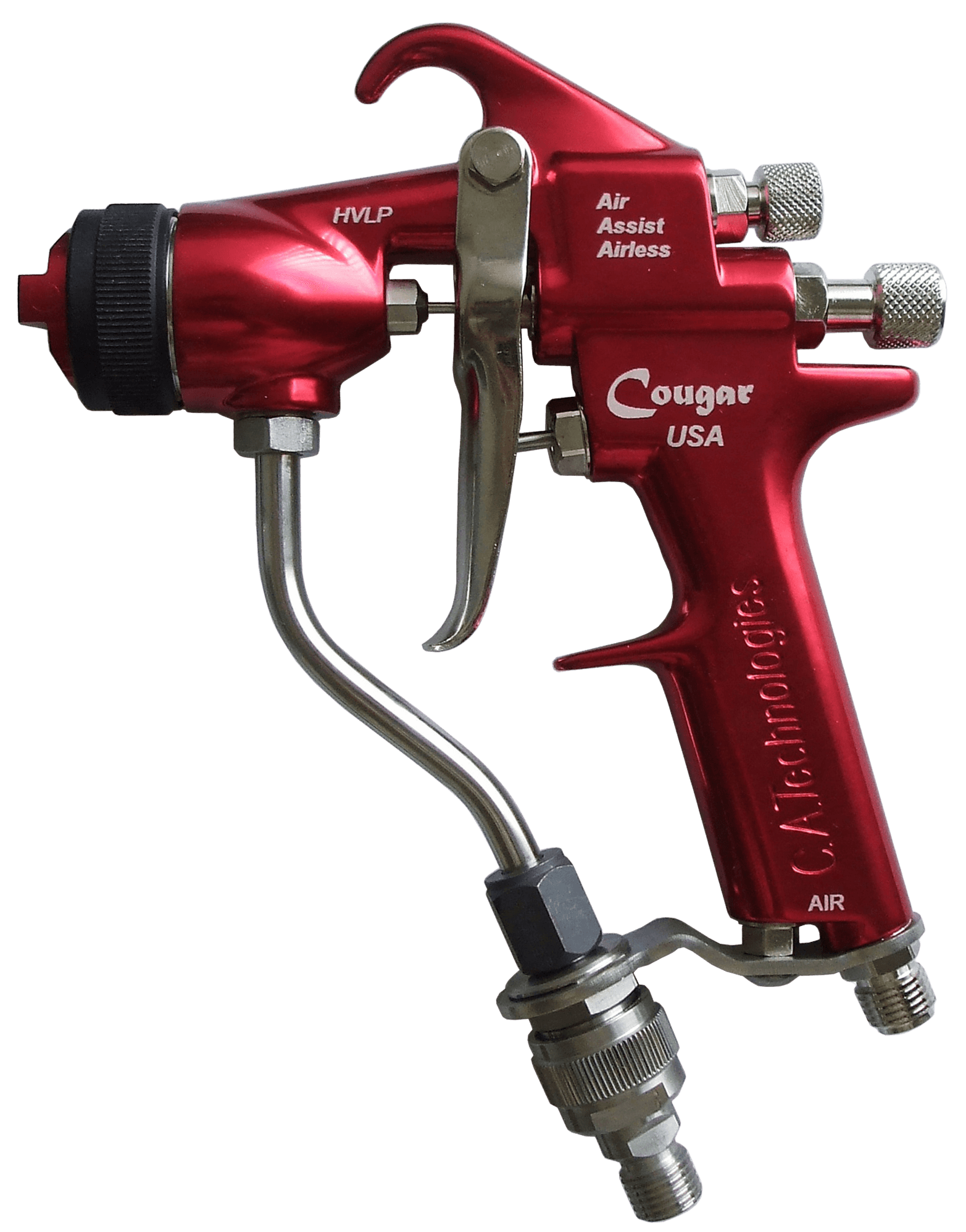

C.A. Technologies Cougar Air-Assisted Airless Spray Gun
C.A. Technologies Cougar — Air-Assisted Airless Spray Gun with Locking Fluid Shut-Off
The C.A. Technologies Cougar is an air-assisted airless (AAA) spray gun that pairs airless fluid delivery with shaping air for higher transfer efficiency and a finer finish than straight airless. It runs the same 36-series reversible tip lineup as the Bobcat — 0.007" to 0.021" orifices in 20° to 80° spray angles — and adds a fluid shut-off knob that locks the trigger closed when turned clockwise for safe shutdown and tip changes. Paired with a CA Technologies AAA pump it handles higher-viscosity industrial and wood coatings at production speed. Built for rebuildability, the Cougar's complete parts list keeps it serviceable for the long haul.
Specifications
Type
Air-assisted airless (AAA) spray gun
Feed
Pressure pump (AAA)
Body
Aluminum
Fluid Path
Stainless steel
Air Inlet
1/4" NPS (m)
Nozzle Range
36-series: 0.007" – 0.021"
Key Features
Air-assisted airless
higher transfer efficiency and finer finish than straight airless
36-series reversible tips
0.007"–0.021" orifices, 20°–80° angles
Locking fluid shut-off knob
secures the trigger for safe shutdown & tip changes
Pairs with CA Technologies AAA pumps for higher-viscosity materials
Shares the Bobcat 36-series tip lineup
Full parts breakdown for long-term rebuildability
Model Selection Guide
Match the 36-series tip to your material and pattern — smaller orifice and angle for fine finish, larger for production and higher build. Pair with the right CAT AAA pump ratio. Call CET at 586-210-0555.
| Model | Tip Sizes | Pressure | Material Compatibility | |
|---|---|---|---|---|
| Cougar AAA | 36-series: 0.007"–0.021" (20°–80°) | Air-assisted airless (pump-fed) | Higher-viscosity wood & industrial coatings, lacquers, primers, high-solids | Shop → |
Technical Specifications
- Gun Type
- Air-assisted airless (AAA) spray gun
- Feed Type
- Pressure pump (AAA)
- Gun Body
- Aluminum
- Fluid Path
- Stainless steel
- Air Inlet
- 1/4" NPS (m)
- Fluid Nozzle Range
- 36-series: 0.007" – 0.021"
Replacement Parts
Genuine C.A. Technologies replacement parts in stock at CET. Part numbers without a shop link are available by phone — call or text 586-210-0555.
Air Caps
Fluid Needles
Repair Kits
Fan & Air Control
Triggers, Springs & Seals
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 36-100 | Tip Screen Gasket 10 Pack 36 100 10 | — | Shop → |
| 60-119 | Washer Low Density Polyethyl | — | Shop → |
| 60-208 | Spring Md | — | Shop → |
| 60-1033 | Trigger Pivot Set | — | Shop → |
| 60-1520 | Tip Screen Gasket 10 Pack 36 100 10 | — | Shop → |
| 60-2102 | Trigger Slim Fit | — | Shop → |
| 66-137 | Spring Seat Reversible | — | Shop → |
| 98-8007 | Tip Seal | — | Shop → |
| 98-8014 | Cat Xpress O-Ring Teflon | — | Shop → |
Service & Repair Parts
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 36-207 | Air Assisted Airless AAA Tip 207 | — | Shop → |
| 36-213 | Air Assisted Airless AAA Tip 213 | — | Shop → |
| 36-309 | Air Assisted Airless AAA Tip 309 | — | Shop → |
| 36-311 | Air Assisted Airless AAA Tip 311 | — | Shop → |
| 36-313 | Air Assisted Airless AAA Tip 313 | — | Shop → |
| 36-315 | Air Assisted Airless AAA Tip 315 | — | Shop → |
| 36-409 | Air Assisted Airless AAA Tip 409 | — | Shop → |
| 36-411 | Air Assisted Airless AAA Tip 411 | — | Shop → |
| 36-413 | Air Assisted Airless AAA Tip 413 | — | Shop → |
| 36-415 | Air Assisted Airless AAA Tip 415 | — | Shop → |
| 36-417 | Air Assisted Airless AAA Tip 417 | — | Shop → |
| 36-511 | Air Assisted Airless AAA Tip 511 | — | Shop → |
| 36-513 | Air Assisted Airless AAA Tip 513 | — | Shop → |
| 36-515 | Air Assisted Airless AAA Tip 515 | — | Shop → |
| 36-517 | Air Assisted Airless AAA Tip 517 | — | Shop → |
| 36-613 | Air Assisted Airless AAA Tip 613 | — | Shop → |
| 36-615 | Air Assisted Airless AAA Tip 615 | — | Shop → |
| 36-619 | Air Assisted Airless AAA Tip 619 | — | Shop → |
| 36-621 | Air Assisted Airless AAA Tip 621 | — | Shop → |
| 36-715 | Air Assisted Airless AAA Tip 715 | — | Shop → |
| 36-815 | Air Assisted Airless AAA Tip 815 | — | Shop → |
| 60-104 | Air Inlet Fitting | — | Shop → |
| 60-201 | Rear Bushing | — | Shop → |
| 60-202 | Fluid Control Knob Lynx | — | Shop → |
| 66-101 | Gun Handle | — | Shop → |
| 66-110 | Seat Retainer For Bobcat Air Assist Airless Spray Gun | — | Shop → |
| 66-115 | Fluid Tube Assembly | — | Shop → |
| 66-118 | Support Bracket Fluid Inlet | — | Shop → |
| 66-119 | Handle Plug | — | Shop → |
| 66-121 | Filter Housing Upper | — | Shop → |
| 66-122 | Filter Housing Lower | — | Shop → |
| 66-123 | Filter Nut | — | Shop → |
| 66-124 | Filter Element 60 Mesh | — | Shop → |
| 66-125 | Filter Element 100 Mesh | — | Shop → |
| 98-0186 | Screw SS Button Hd 1 4 20x3 8 | — | Shop → |
C.A. Technologies Cougar Air-Assisted Airless Spray Gun Documents
View All →C.A. Technologies Cougar
Cougar
C.A. Technologies service manual for the Cougar. 5-page PDF — view online or download free from CET.
