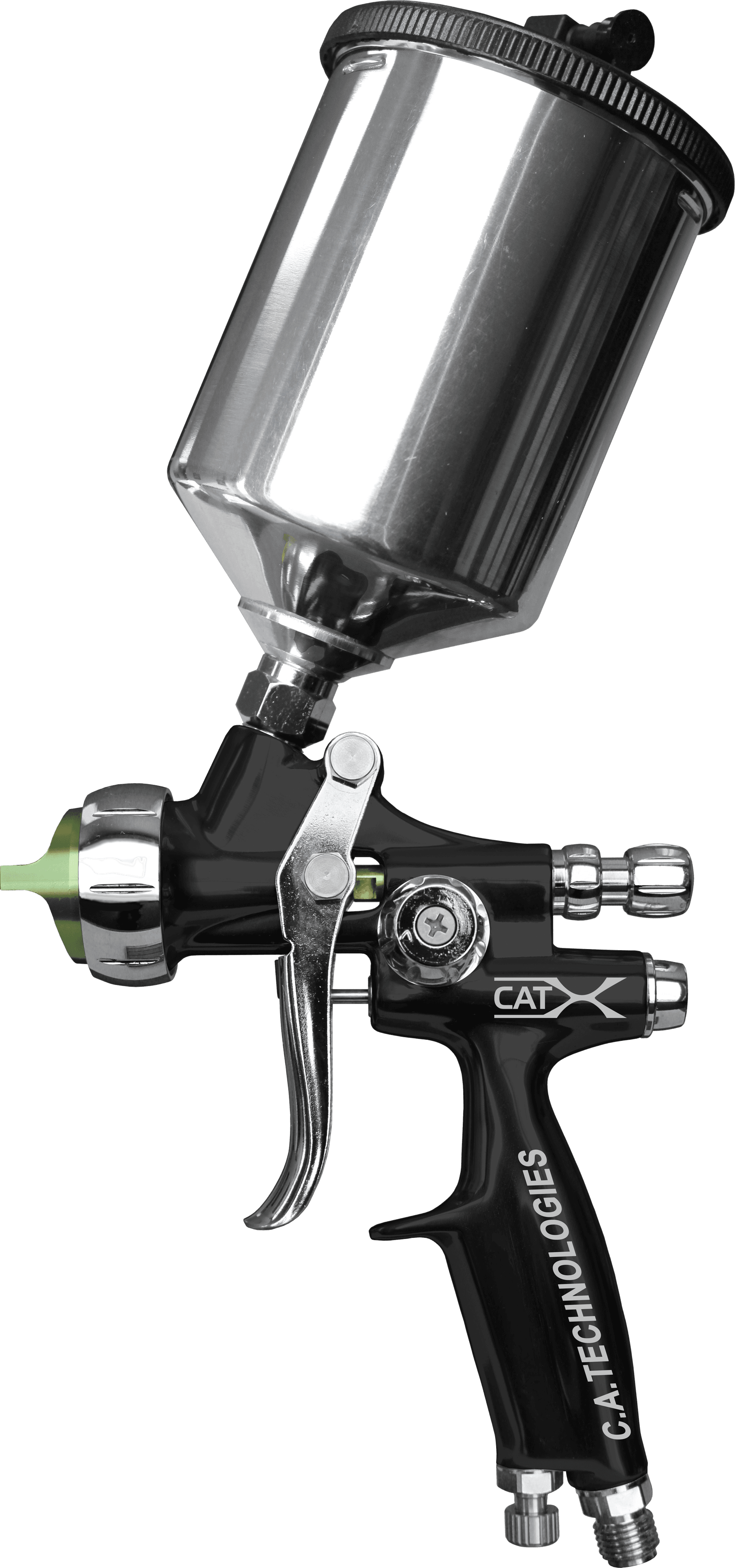

C.A. Technologies CAT-X Spray Gun
C.A. Technologies CAT-X — Hybrid-Technology Spray Gun for Extreme Atomization with HVLP Compliance
The C.A. Technologies CAT-X is a hybrid-technology spray gun engineered to deliver extreme atomization — a finer, more uniform finish than conventional HVLP — while still meeting HVLP/pressure-reduced transfer-efficiency compliance. Its cap and nozzle geometry breaks material into a tighter particle size at the same compliant cap pressure, which is what makes it a go-to for demanding automotive and industrial fine-finish work. The CAT-X runs CAT fluid tips from 0.8 mm up with matching 40-14xx needles and compliant maximum gun-inlet pressures. Stainless fluid passages make it waterborne-ready, and it shares much of the CAT service-parts platform.
Specifications
Type
Hybrid extreme-atomization HVLP / pressure-reduced spray gun
Feed
Gravity / pressure feed
Body
Forged aluminum
Fluid Path
Stainless steel
Air Inlet
1/4" NPS (m)
Nozzle Range
0.8 mm and up
Key Features
Hybrid technology
extreme atomization at compliant cap pressure
Finer, more uniform particle size than standard HVLP
CAT fluid tips from 0.8 mm with matching 40-14xx needles
Meets HVLP / pressure-reduced transfer-efficiency compliance
Stainless fluid path
waterborne ready
Shares much of the CAT service-parts platform
Model Selection Guide
Match the CAT-X cap, fluid tip, and 40-14xx needle to your material and target finish. It excels at fine-finish automotive and industrial topcoats. Call CET at 586-210-0555 for setup help.
Technical Specifications
- Gun Type
- Hybrid extreme-atomization HVLP / pressure-reduced spray gun
- Feed Type
- Gravity / pressure feed
- Gun Body
- Forged aluminum
- Fluid Path
- Stainless steel
- Air Inlet
- 1/4" NPS (m)
- Fluid Nozzle Range
- 0.8 mm and up
Replacement Parts
Genuine C.A. Technologies replacement parts in stock at CET. Part numbers without a shop link are available by phone — call or text 586-210-0555.
Air Caps
Fluid Nozzles & Tips
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 33-0208 | Series 300H Replacement Orifice 8 | — | Shop → |
| 33-0210 | Series 300H Replacement Orifice (1.0 mm) | — | Shop → |
| 33-0212 | Series 300H Replacement Orifice (1.2 mm) | — | Shop → |
| 33-0213 | Series 300H Replacement Orifice (1.3 mm) | — | Shop → |
| 33-0214 | Series 300H Replacement Orifice (1.4 mm) | — | Shop → |
| 33-0215 | Series 300H Replacement Orifice (1.5 mm) | — | Shop → |
| 33-0217 | Series 300H Replacement Orifice (1.7 mm) | — | Shop → |
| 33-0219 | Series 300H Replacement Orifice (1.9 mm) | — | Shop → |
| 33-0222 | Series 300H Replacement Orifice (2.2 mm) | — | Shop → |
| 60-1360 | Cat X Nozzle Body | — | Shop → |
| 60-1362 | Cat X Nozzle Carrier | — | Shop → |
| 98-0104 | Orifice Socket 3 8 X 1 4 Dr | — | Shop → |
Fluid Needles
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 40-1408 | Cat X Series Needle Assembly For 0.8mm | — | Shop → |
| 40-1410 | Cat X Series Needle Assembly For 1.0mm | — | Shop → |
| 40-1412 | Cat X Series Needle Assembly For 1.2mm | — | Shop → |
| 40-1413 | Cat X Series Needle Assembly For 1.3mm | — | Shop → |
| 40-1414 | Cat X Series Needle Assembly For 1.4mm | — | Shop → |
| 40-1415 | Cat X Series Needle Assembly For 1.5mm | — | Shop → |
| 40-1417 | Cat X Series Needle Assembly For 1.7mm | — | Shop → |
| 40-1419 | Cat X Series Needle Assembly For 1.9mm | — | Shop → |
| 40-1422 | Cat X Series Needle Assembly For 2.2mm | — | Shop → |
| 60-204 | Needle Return Spring Lynx | — | Shop → |
Cups, Lids & Liners
Repair Kits
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 10-161 | Cat X Repair Kit | — | Shop → |
Fan & Air Control
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 60-1319 | Air Control Assembly For Fe Line And Cat X | — | Shop → |
| 60-1371 | Cat X Air Valve Stem | — | Shop → |
| 60-1379 | Cat X Air Valve Assembly | — | Shop → |
| 60-1385 | Cat X Fan Control Complete Assembly | — | Shop → |
| 61-1003 | Air Valve Spring | — | Shop → |
| 61-1032 | Air Valve Poppet Seal | — | Shop → |
| 98-5110 | Cat X Fan Control O-Ring | — | Shop → |
Triggers, Springs & Seals
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 60-205 | Spring Seat | — | Shop → |
| 60-1368 | Cat X Trigger Pivot Pin | — | Shop → |
| 60-1369 | Cat X Trigger Barrel | — | Shop → |
| 60-1370 | Cat X Trigger | — | Shop → |
| 60-1378 | Cat X Trigger Pivot Screw | — | Shop → |
| 98-5125 | O-Ring Tomahawk | — | Shop → |
| 98-8012 | Cat Xpress O-Ring Teflon | — | Shop → |
| 98-8014 | Cat Xpress O-Ring Teflon | — | Shop → |
| 98-8028 | Teflon 0 28 O-Ring | — | Shop → |
Service & Repair Parts
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 51-430 | Gravity Gun Hook | — | Shop → |
| 52-300 | Mini Gun Regulator W Gage Fittings Ca Technologies Spray Equipment Spare Parts | — | Shop → |
| 60-104 | Air Inlet Fitting | — | Shop → |
| 60-1363 | Cat X Fluid Inlet Insert | — | Shop → |
| 60-1375 | Cat X Rear Cap | — | Shop → |
| 60-1376 | Cat X Material Control Knob | — | Shop → |
| 60-1377 | Cat X Material Control Locknut | — | Shop → |
| 60-1386 | Cat X Air Baffle | — | Shop → |
| 60-8001 | Multi Purpose Wrench Ca Technologies Spray Gun Spare Parts | — | Shop → |
| 98-0112 | Multi Purpose Wrench Ca Technologies Spray Gun Spare Parts | — | Shop → |
| 98-0113 | Gun Brush | — | Shop → |
| 98-8011 | Teflon 0 Ring | — | Shop → |
C.A. Technologies CAT-X Spray Gun Documents
View All →C.A. Technologies CAT-X
CAT-X
C.A. Technologies service manual for the CAT-X. 5-page PDF — view online or download free from CET.
