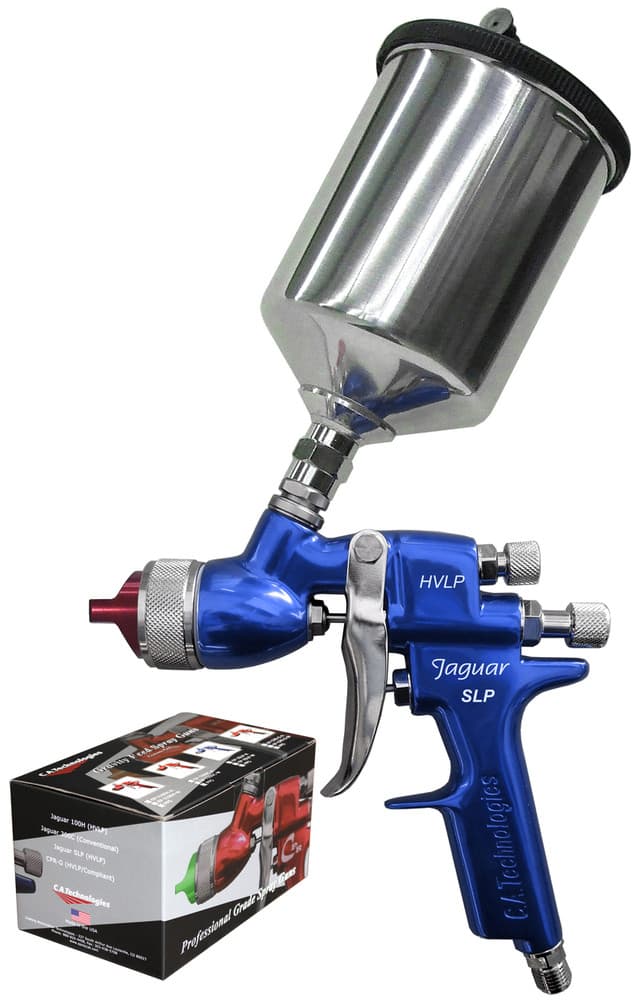

C.A. Technologies CAT SLP Spray Gun
C.A. Technologies CAT SLP — Super-Low-Pressure HVLP Spray Gun for the Softest Fine Finishes
The C.A. Technologies CAT SLP (Super Low Pressure) is an HVLP fine-finish spray gun that runs the lowest cap pressure in the CAT line for the softest, lowest-bounce-back spray pattern. It uses 23-1308/23-1310 series caps with fluid nozzles from 0.8 mm and matching 40-13xx needles, with maximum gun-inlet pressures held low for HVLP compliance and minimal blow-back on delicate parts. That makes the CAT SLP ideal for stains, sealers, and waterborne topcoats where overspray and rebound must be kept to a minimum — interior cabinet work, detailed wood finishing, and tight-tolerance spraying. Stainless fluid passages make it waterborne-ready, and W / W-PPS cup options support 3M PPS users.
Specifications
Type
Super-low-pressure HVLP fine-finish spray gun
Feed
Gravity / pressure feed
Body
Forged aluminum
Fluid Path
Stainless steel
Air Inlet
1/4" NPS (m)
Nozzle Range
0.8 mm – 1.2 mm
Key Features
Super-low-pressure HVLP
the softest pattern with minimal bounce-back
23-1308 / 23-1310 caps with fluid nozzles from 0.8 mm and 40-13xx needles
Ideal for stains, sealers, and waterborne topcoats on delicate parts
W / W-PPS cup options for 3M PPS users
Compliant maximum gun-inlet pressures
Stainless fluid path
waterborne ready
Model Selection Guide
The CAT SLP shines on delicate fine-finish work where overspray and rebound must be minimized. Match the cap, tip, and 40-13xx needle to your material. Call CET at 586-210-0555.
| Model | Tip Sizes | Pressure | Material Compatibility | |
|---|---|---|---|---|
| CAT SLP | 0.8–1.2 mm | Super Low Pressure HVLP (compliant) | Softest fine finishing — stains, sealers, waterborne topcoats | Shop → |
Technical Specifications
- Gun Type
- Super-low-pressure HVLP fine-finish spray gun
- Feed Type
- Gravity / pressure feed
- Gun Body
- Forged aluminum
- Fluid Path
- Stainless steel
- Air Inlet
- 1/4" NPS (m)
- Fluid Nozzle Range
- 0.8 mm – 1.2 mm
Replacement Parts
Genuine C.A. Technologies replacement parts in stock at CET. Part numbers without a shop link are available by phone — call or text 586-210-0555.
Air Caps
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 23-1308 | Series SLP HVLP Air Cap (0.8 mm) | — | Shop → |
| 23-1310 | Series SLP HVLP Air Cap (1.0 mm) | — | Shop → |
| 23-1312 | Series SLP HVLP Air Cap (1.2 mm) | — | Shop → |
| 23-1313 | Series SLP HVLP Air Cap (1.3 mm) | — | Shop → |
| 23-1314 | Series SLP HVLP Air Cap (1.4 mm) | — | Shop → |
| 23-1315 | Series SLP HVLP Air Cap (1.5 mm) | — | Shop → |
| 23-1317 | Series SLP HVLP Air Cap (1.7 mm) | — | Shop → |
| 60-34H | Air Cap Adapter | — | Shop → |
Fluid Nozzles & Tips
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 33-0208 | Series 300H Replacement Orifice 8 | — | Shop → |
| 33-0210 | Series 300H Replacement Orifice (1.0 mm) | — | Shop → |
| 33-0212 | Series 300H Replacement Orifice (1.2 mm) | — | Shop → |
| 33-0213 | Series 300H Replacement Orifice (1.3 mm) | — | Shop → |
| 33-0214 | Series 300H Replacement Orifice (1.4 mm) | — | Shop → |
| 33-0215 | Series 300H Replacement Orifice (1.5 mm) | — | Shop → |
| 33-0217 | Series 300H Replacement Orifice (1.7 mm) | — | Shop → |
| 33-0219 | Series 300H Replacement Orifice (1.9 mm) | — | Shop → |
| 33-0222 | Series 300H Replacement Orifice (2.2 mm) | — | Shop → |
| 33-1202 | SLP Fluid Nozzle Body | — | Shop → |
| 60-L31H | Fluid Nozzle Carrier HVLP USA Version | — | Shop → |
| 98-0104 | Orifice Socket 3 8 X 1 4 Dr | — | Shop → |
Fluid Needles
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 40-1308 | Series 300H Needle Assembly For 8mm 308 | — | Shop → |
| 40-1310 | Series 300H Needle Assembly For 1.0mm 310 | — | Shop → |
| 40-1312 | Series 300H Needle Assembly For 1.2mm 312 | — | Shop → |
| 40-1313 | Series 300H HVLP Needle Assembly For 1.3mm 313h | — | Shop → |
| 40-1314 | Series 300H HVLP Needle Assembly For 1.4mm 314h | — | Shop → |
| 40-1315 | Series 300H Needle Assembly For 1.5mm 315 | — | Shop → |
| 40-1317 | Series 300H Needle Assembly For 1.7mm 317 | — | Shop → |
| 40-1319 | Series 300H Needle Assembly For 1.9mm 319 | — | Shop → |
| 40-1322 | Series 300H Needle Assembly For 2.2mm 322 | — | Shop → |
| 60-204 | Needle Return Spring Lynx | — | Shop → |
| 60-1400 | Needle Seal Cartridge L100c | — | Shop → |
Cups, Lids & Liners
Fan & Air Control
Triggers, Springs & Seals
Service & Repair Parts
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 60-104 | Air Inlet Fitting | — | Shop → |
| 60-122 | Plug | — | Shop → |
| 60-126 | Fluid Inlet USA Version | — | Shop → |
| 60-128 | Locknut Fluid Inlet USA Version | — | Shop → |
| 60-201 | Rear Bushing | — | Shop → |
| 60-202 | Fluid Control Knob Lynx | — | Shop → |
| 60-8001 | Multi Purpose Wrench Ca Technologies Spray Gun Spare Parts | — | Shop → |
| 91-475 | Mini Pass Through Regulator W Check Valve | — | Shop → |
| 98-0109 | Set Screw 5 16 24 X 3 8 S S | — | Shop → |
| 98-0112 | Small Ratchet Wrench | — | Shop → |
| 98-0113 | Gun Brush | — | Shop → |
C.A. Technologies CAT SLP Spray Gun Documents
View All →C.A. Technologies CAT SLP Parts Sheet
CAT SLP
C.A. Technologies parts sheet for the CAT SLP. 5-page PDF — view online or download free from CET.
