Question 1

What is the difference between the PEA-X1 and the PEM-X1?

Accepted Answer

Same X1 platform, different duty: the PEM-X1 is the hand-held manual gun (490 g, trigger-operated), while the PEA-X1 is the automatic version built for reciprocators and fixed mounts — a slim 48 × 66 mm housing with remote triggering from the line control. Charging performance is equivalent (100 kV corona, up to 450 g/min), and nozzles, electrode holders, and accessories interchange between them.

Question 2

Which PEA-X1 version do I need?

Accepted Answer

Basic F (2430803) with the F1 flat spray nozzle is the default for flat panel work. Basic R (2430804) swaps to deflector cones (D18/D25/D34) for round-cloud coverage on 3D parts and profiles. Basic (+) (2430805) reverses cascade polarity for powders that charge positive — nylon being the common case. The PEA-X1E (2430806) is tuned for heat-resistant enamel coatings. All four list at $4,083–$4,123.

Question 3

Can the PEA-X1 be mounted on a robot?

Accepted Answer

Yes — Twin Outside (2424723) and Single Outside (2424720) robot holders adapt the PEA-X1 to robot arms. That said, if you are building a dedicated robotic cell, look at the PER-X1 robot gun first: it is the X1 variant purpose-built for multi-axis robot mounting and cabling, with brackets for Lesta and FANUC CRX integration.

Question 4

How far can the gun be from the control panel?

Accepted Answer

Connection cables are available in 0.5, 2, 5, 10, and 20 m lengths, so the gun can sit up to 20 meters from its control unit — enough for most booth-to-control-room layouts. Powder tubes (D8-10 and D10-12) and kink-protection hardware are sized to match.

Question 5

How do I coat deep recesses or box sections on an automatic line?

Accepted Answer

The X1 system offers VL nozzle extensions in 150, 300, 500, and 750 mm, and XL extension tubes from 0.85 m up to 2.5 m, plus angled nozzles at 30°, 45°, and 60° and a 90° cross nozzle. Pair an extension with the right deflector or angled nozzle and the gun reaches inside enclosures that would otherwise need a manual touch-up pass.

Model	Configuration	Output
2430803	PEA-X1 Basic F — F1 flat spray nozzle, negative cascade	450 g/min	Shop →
2430804	PEA-X1 Basic R — round spray with D18/D25/D34 deflector cones	450 g/min	Shop →
2430805	PEA-X1 Basic (+) — positive-polarity cascade with F1 flat spray nozzle, for nylon powders	450 g/min	Shop →
2430806	PEA-X1E — optimized for heat-resistant enamel application	450 g/min	Shop →

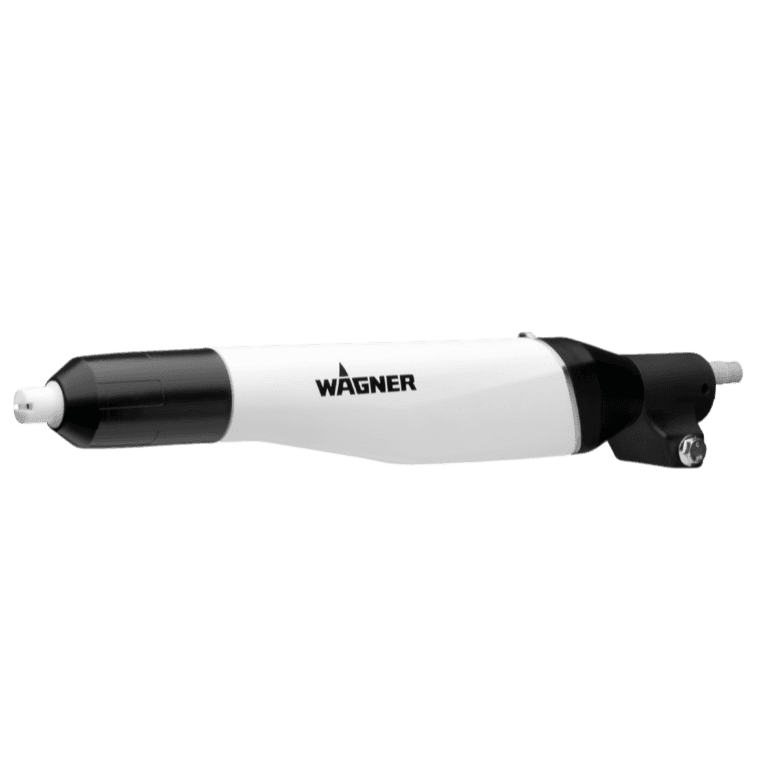

Wagner PEA-X1 Automatic Powder Gun

Automatic Powder Spray Gun (Corona)

Injector feed

Model Selection Guide

Technical Specifications
