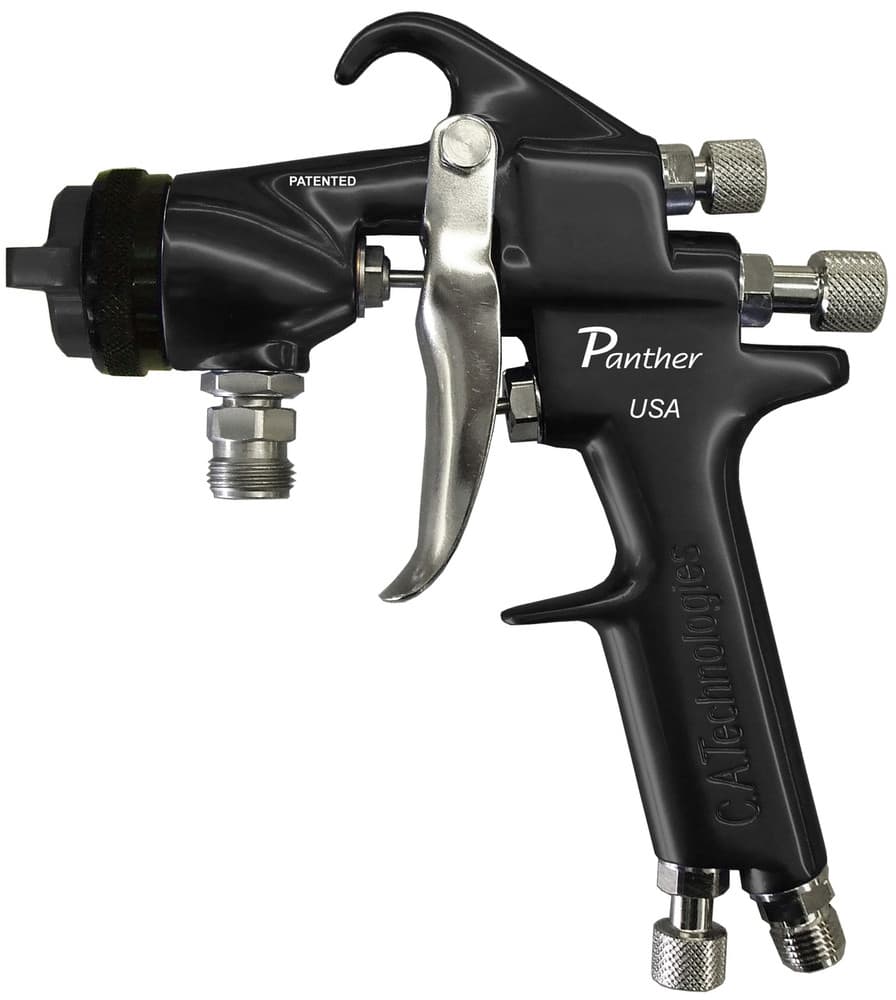

C.A. Technologies Panther Spray Gun
C.A. Technologies Panther — Adhesive & Industrial Specialty Spray Gun in Gravity and HVLP Configurations
The C.A. Technologies Panther is CAT's adhesive and industrial specialty gun — built for contact cements, neoprene adhesives, corrosion-control coatings, and heavier industrial materials where a standard finishing gun struggles. The gravity-feed 100G is the everyday Panther; the compliant HVLP 100H runs a low 15 PSI cap pressure at 6–8 SCFM for transfer-efficiency compliance on small air systems; and the 200-series HVLP (200H) steps up to bigger 1.1–1.4 mm tips and higher fluid speeds (~18 SCFM) for heavier adhesive and industrial materials. A PTFE-coated (Teflon) build is available for sticky glues and corrosive coatings, keeping material from building up on the gun. Like the rest of the CAT line the Panther uses stainless fluid passages, accepts the same family of air caps and fluid nozzles matched by tip size, and shares a common service-parts platform.
Specifications
Type
Adhesive / industrial specialty spray gun (gravity & HVLP)
Feed
Gravity (100G) and pressure feed
Body
Forged aluminum (PTFE-coated build available)
Fluid Path
Stainless steel
Air Inlet
1/4" NPS (m)
Nozzle Range
0.5 mm – 1.8 mm
Key Features
Built for adhesives
contact cements, neoprenes, and sticky high-build materials
Gravity-feed 100G plus compliant HVLP 100H and higher-output 200H
PTFE (Teflon) coated build available
resists adhesive and corrosive build-up
Low-CFM 100H runs 15 PSI cap at 6–8 SCFM for small air systems
Stainless fluid passages for waterborne and corrosion-control coatings
Shares the CAT air cap / fluid nozzle / service-parts platform
Model Selection Guide
Choose the Panther by feed and output: 100G is gravity feed for everyday adhesive work; 100H is low-CFM compliant HVLP; 200H steps up to bigger tips and higher fluid speed for heavier materials. Ask about the PTFE-coated build for sticky glues and corrosion-control coatings. Call CET at 586-210-0555.
| Model | Tip Sizes | Pressure | Material Compatibility | |
|---|---|---|---|---|
| Panther 100G Adhesive Gun | 0.6–1.8 mm | Conventional — gravity feed | Adhesives, contact cement, neoprene, industrial coatings | Shop → |
| Panther 100H HVLP | 0.5–1.7 mm | HVLP — 15 PSI max cap, 6–8 SCFM | Compliant low-CFM adhesive & industrial spraying | Shop → |
| Panther 200H HVLP High Solids | 1.1–1.4 mm | HVLP — 29–38 PSI cap, ~18 SCFM | Heavier compliant adhesive & industrial materials | Shop → |
| Panther P200C Corrosion Control | 1.4 - 2.2mm | Conventional - Pressure Feed | Heavy high solids coatings | Shop → |
| Panther 200Z Zinc Rich | 1.8 - 2.8mm | Conventional | Zinc Rich Coatings | Shop → |
Technical Specifications
- Gun Type
- Adhesive / industrial specialty spray gun (gravity & HVLP)
- Feed Type
- Gravity (100G) and pressure feed
- Gun Body
- Forged aluminum (PTFE-coated build available)
- Fluid Path
- Stainless steel
- Air Inlet
- 1/4" NPS (m)
- Fluid Nozzle Range
- 0.5 mm – 1.8 mm
Replacement Parts
Genuine C.A. Technologies replacement parts in stock at CET. Part numbers without a shop link are available by phone — call or text 586-210-0555.
Air Caps
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 21-200 | 100C Internal Mix Air Cap Replaces Binks 200 Air Cap | — | Shop → |
| 21-1001 | Series 100H Air Cap Retaining Ring | — | Shop → |
| 21-1090 | Air Cap Series 100H HVLP | — | Shop → |
| 21-1091 | Air Cap Series 100H HVLP | — | Shop → |
| 21-1092 | Air Cap Series 100H HVLP | — | Shop → |
| 21-1093 | Air Cap Series 100H HVLP | — | Shop → |
| 21-1094 | Air Cap Series 100H HVLP | — | Shop → |
| 21-1095 | Air Cap Series 100H HVLP | — | Shop → |
| 21-1095T | Air Cap Series 100H HVLP 21 1095t Teflon | — | Shop → |
| 21-1097 | Air Cap Series 100H HVLP | — | Shop → |
| 21-1195 | Air Cap Series 100H HVLP | — | |
| 21-1197 | Series 100H HVLP Air Cap Test Gage | — | Shop → |
| 21-2166 | Series 100C Conventional Air Cap 0 6 1 8 5 SCFM | — | |
| 21-2167 | Series 100C Conventional Air Cap 2 5 14 5 SCFM Pressure | — | Shop → |
| 21-2168 | Series 100C Conventional Air Cap 2 8 14 SCFM Pressure | — | Shop → |
| 21-2201 | Air Cap 201 Internal Mix | — | Shop → |
| 21-2263 | Series 100C Conventional Air Cap 0 6 1 8 14 SCFM Pressure | — | Shop → |
| 21-2266 | Series 100C Conventional Air Cap 0 6 1 8 16 2 SCFM Pressure Teflon Coated 21 2266 3t | — | Shop → |
| 21-2266T | 2266 Air Cap Teflon | — | Shop → |
| 21-2267 | Series 100C Conventional Air Cap 2 5 15 SCFM Pressure | — | Shop → |
| 21-2268 | Series 100C Conventional Air Cap Siphon | — | Shop → |
| 21-2366 | Series 100C Conventional Air Cap 0 6 1 8 12 SCFM Siphon | — | Shop → |
| 21-2466 | Series 100C Conventional Air Cap 0 6 1 8 15 SCFM Siphon | — | Shop → |
| 21-2467 | Series 100C Conventional Air Cap 2 2 15 SCFM | — | Shop → |
| 22-1100 | Series 200H HVLP Air Cap Test Gage | — | Shop → |
| 60-12C | Air Cap Adapter 100C USA Version | — | Shop → |
| 60-12H | Air Cap Adapter 100H USA Version | — | Shop → |
| 60-22 | Air Cap Adapter 200 USA Version | — | Shop → |
Fluid Nozzles & Tips
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 31-0205 | Material Nozzle Series 100H 5mm | — | Shop → |
| 31-0208 | Material Nozzle Series 100H 8mm | — | Shop → |
| 31-0210 | Material Nozzle Series 100H 1.0mm | — | Shop → |
| 31-0212 | Material Nozzle Series 100H 1.2mm | — | Shop → |
| 31-0213 | Material Nozzle Series 100H 1.3mm | — | Shop → |
| 31-0214 | Material Nozzle Series 100H 1.4mm | — | Shop → |
| 31-0215 | Material Nozzle Series 100H 1.5mm | — | Shop → |
| 31-0216 | Material Nozzle Series 100H 1.6mm | — | Shop → |
| 31-0217 | Material Nozzle Series 100H 1.7mm | — | Shop → |
| 31-0417 | Series 100H F Replacement Orifice | — | Shop → |
| 31-0606 | Series 100C Replacement Orifice 0.6mm | — | Shop → |
| 31-0607 | Series 100C Replacement Orifice 0.7mm | — | Shop → |
| 31-0610 | Series 100C Replacement Orifice 1.0mm | — | Shop → |
| 31-0612 | Series 100C Replacement Orifice 1.2mm | — | Shop → |
| 31-0613 | Series 100C Replacement Orifice 1.3mm | — | Shop → |
| 31-0615 | Series 100C Replacement Orifice 1.5mm | — | Shop → |
| 31-0618 | Series 100C Replacement Orifice 1.8mm | — | Shop → |
| 31-0618V | Series 100C Carbide Replacement Orifice 1.8mm | — | Shop → |
| 31-0622 | Series 100C Replacement Orifice 2.2mm | — | Shop → |
| 31-0622V | Series 100C Carbide Replacement Orifice 2.2mm | — | Shop → |
| 31-0628 | Series 100C Replacement Orifice | — | Shop → |
| 31-0628V | Series 100C Carbide Replacement Orifice 2.8mm | — | Shop → |
| 31-1201 | Series 100H Fluid Nozzle Body Only | — | Shop → |
| 32-0222 | Series 200H Replacement Orifice | — | Shop → |
| 32-0611 | Series 200C Replacement Orifice | — | Shop → |
| 32-0614 | Series 200C Replacement Orifice | — | Shop → |
| 32-0618 | Series 200C Replacement Orifice | — | Shop → |
| 32-0622 | Series 200C Replacement Orifice | — | Shop → |
| 32-1201 | Series 200H Fluid Nozzle Body Only | — | Shop → |
| 33-2201 | Series 300C Fluid Nozzle Body Only | — | Shop → |
| 60-L11C | Nozzle Body Carrier For Ca Tech Spray Guns | — | Shop → |
| 60-L11H | Fluid Nozzle Carrier L100h | — | Shop → |
| 61-1005 | Nozzle Gasket | — | Shop → |
Fluid Needles
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 40-1100 | Series 100H Needle Assembly 100 | — | Shop → |
| 40-1107 | Series 100C Needle Assembly For 6mm 7mm 107 | — | Shop → |
| 40-1110 | Series 100C Needle Assembly For 1.0mm 1.3mm 110 | — | Shop → |
| 40-1114F | Series 100H Feathering Needle Assembly 1.4mm | — | Shop → |
| 40-1115 | Series 100C Needle Assembly For 1.5mm 1.8mm 115 | — | Shop → |
| 40-1122 | Series 100C Needle Assembly For 2.2mm 122 | — | Shop → |
| 40-1128 | Series 100C Needle Assembly For 2.8mm 128 | — | Shop → |
| 40-1211 | Series 200 Needle Assembly For 1.1mm 211 | — | Shop → |
| 40-1214 | Series 200 Needle Assembly For 1.4mm 214 | — | Shop → |
| 40-1218 | Series 200 Needle Assembly For 1.8mm 218 | — | Shop → |
| 40-1222 | Series 200 Needle Assembly For 1 8s 2.2mm 222 | — | Shop → |
| 40-6201 | Carbide Tip Needle For Lynx 100C | — | Shop → |
| 60-206 | Heavy Duty Needle Return Spring | — | Shop → |
| 60-1400 | Needle Seal Cartridge L100c | — | Shop → |
Fan & Air Control
Triggers, Springs & Seals
C.A. Technologies Panther Spray Gun Documents
View All →C.A. Technologies Panther 100G
Panther · Panther 100G
C.A. Technologies service manual for the Panther (models Panther 100G). 5-page PDF — view online or download free from CET.
C.A. Technologies Panther 100H
Panther · Panther 100H
C.A. Technologies service manual for the Panther (models Panther 100H). 5-page PDF — view online or download free from CET.
C.A. Technologies Panther 200H
Panther · Panther 200H
C.A. Technologies service manual for the Panther (models Panther 200H). 5-page PDF — view online or download free from CET.
