C.A. Technologies CAT Xpress Spray Gun

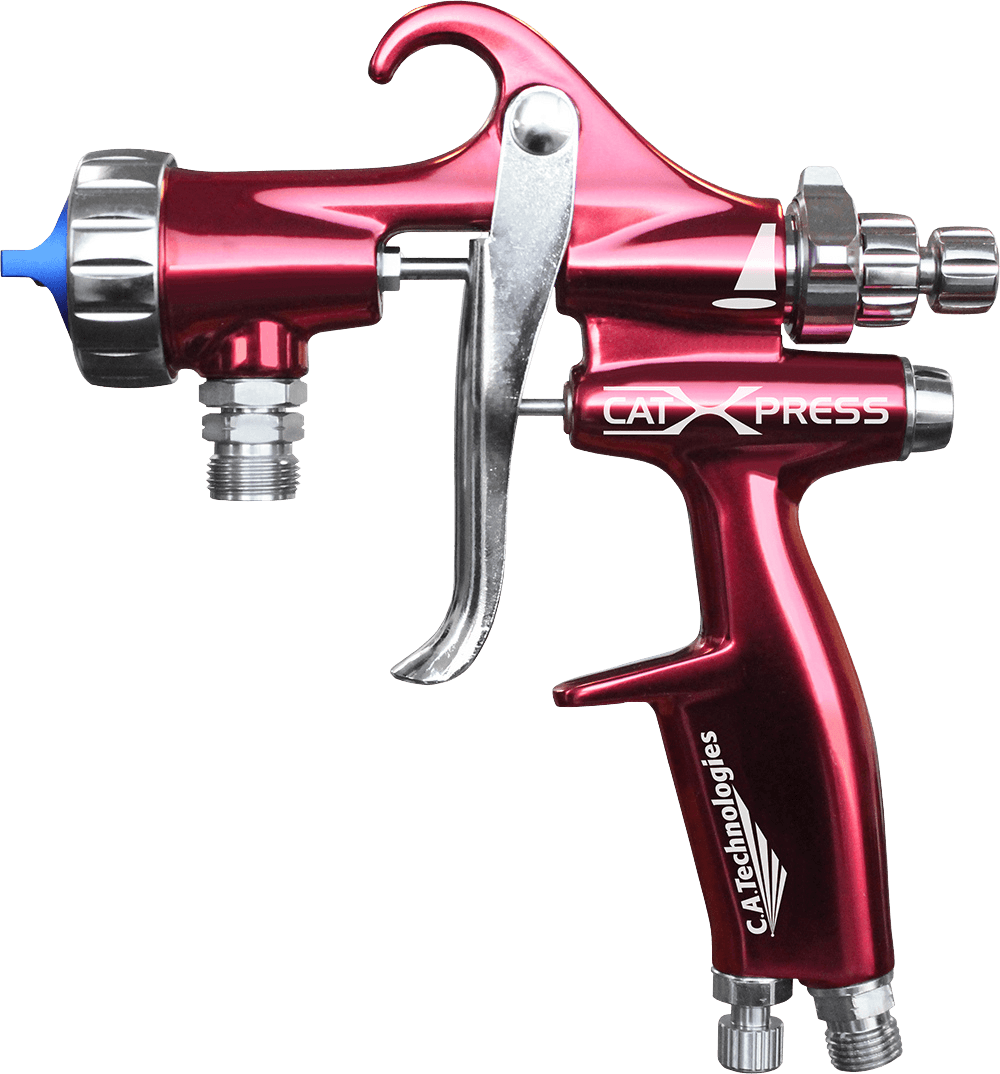

C.A. Technologies CAT Xpress — Pressure-Feed Spray Gun with Swappable HVLP & Pressure-Reduced Air Caps
The C.A. Technologies CAT Xpress is a pressure-feed spray gun that ships with the flexibility to run two air caps: a pressure-reduced cap (part 2403218 / 2403224) for maximum atomization, and a true HVLP cap (2403233 / 2403235) for compliance areas — each consuming about 9 CFM at its rated inlet pressure. That lets one gun cover both high-output production spraying and compliant fine finishing by swapping the cap. The fluid nozzle range runs from 0.8 mm through 2.2 mm with matched needles, so the CAT Xpress handles fine finish through heavier-bodied coatings. Stainless fluid passages make it waterborne-ready.
Specifications
Type
Pressure-feed spray gun (swappable HVLP / pressure-reduced caps)
Feed
Pressure feed (cup, tank, or pump)
Body
Forged aluminum
Fluid Path
Stainless steel
Air Inlet
1/4" NPS (m)
Nozzle Range
0.8 mm – 2.2 mm
Key Features
One gun, two air caps
pressure-reduced for output, HVLP for compliance
Pressure-reduced cap 2403218 / 2403224; HVLP cap 2403233 / 2403235
About 9 CFM at rated inlet pressure on either cap
Fluid tips 0.8 mm to 2.2 mm
fine finish through heavier coatings
Pressure-feed for production volume and consistent delivery
Stainless fluid path
waterborne ready
Model Selection Guide
Run the pressure-reduced cap for maximum atomization and output, or the HVLP cap in compliance areas. Match the fluid tip (0.8–2.2 mm) and needle to your material. Call CET at 586-210-0555.
Technical Specifications
- Gun Type
- Pressure-feed spray gun (swappable HVLP / pressure-reduced caps)
- Feed Type
- Pressure feed (cup, tank, or pump)
- Gun Body
- Forged aluminum
- Fluid Path
- Stainless steel
- Air Inlet
- 1/4" NPS (m)
- Fluid Nozzle Range
- 0.8 mm – 2.2 mm
Replacement Parts
Genuine C.A. Technologies replacement parts in stock at CET. Part numbers without a shop link are available by phone — call or text 586-210-0555.
Air Caps
Fluid Nozzles & Tips
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 2394821 | Cat Xpress Nozzle Body | — | Shop → |
| 2396024 | Cat Xpress Nozzle Carrier | — | Shop → |
| 2404488 | Fluid Tip 0.8mm Assembly | — | Shop → |
| 2404489 | Cat Xpress Fluid Tip 1.0mm Assembly | — | Shop → |
| 2404491 | Cat Xpress Fluid Tip 1.2mm Assembly | — | Shop → |
| 2404492 | Cat Xpress Fluid Tip 1.5mm Assembly | — | Shop → |
| 2404493 | Cat Xpress Fluid Tip 1.8mm Assembly | — | Shop → |
| 2404494 | Cat Xpress Fluid Tip 2.0mm | — | Shop → |
| 2404495 | 2.2mm Fluid Tip | — | Shop → |
| 2412850 | Cat Xpress Fluid Tip 1.3mm Assembly | — | Shop → |
Fluid Needles
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 2396035 | Cat Xpress Needle Spring Guide | — | Shop → |
| 2396038 | Cat Xpress Needle Control Knob | — | Shop → |
| 2396039 | Cat Xpress Needle Control Knob Lock Nut | — | Shop → |
| 2396050 | Cat Xpress Needle Spring | — | Shop → |
| 2397054 | Cat Xpress Fluid Needle 0.8mm Assembly | — | Shop → |
| 2397055 | Cat Xpress Fluid Needle 1.0mm Assembly | — | Shop → |
| 2397056 | Cat Xpress Fluid Needle 1.2mm Assembly | — | Shop → |
| 2397058 | Cat Xpress Fluid Needle 1.5mm Assembly | — | Shop → |
| 2397059 | Cat Xpress Fluid Needle 1.8mm Assembly | — | Shop → |
| 2397060 | Cat Xpress Fluid Needle 2.0mm Assembly | — | Shop → |
| 2397061 | Cat Xpress Fluid Needle 2.2mm Assembly | — | Shop → |
| 2400771 | Cat Xpress Needle Packing Assembly | — | Shop → |
| 2412848 | Cat Xpress Fluid Needle 1.3mm Assembly | — | Shop → |
Fan & Air Control
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 60-1319 | Air Control Assembly For Fe Line And Cat X | — | Shop → |
| 60-1371 | Cat X Air Valve Stem | — | Shop → |
| 61-1003 | Air Valve Spring | — | Shop → |
| 61-1032 | Air Valve Poppet Seal | — | Shop → |
| 2316489 | Cat Xpress Fan Control Seal | — | Shop → |
| 2396032 | Cat Xpress Fan Control Seal | — | Shop → |
| 2400772 | Cat Xpress Air Valve Complete | — | Shop → |
| 2403412 | Cat Xpress Fan Control Sleeve | — | Shop → |
| 2403453 | Cat Xpress Fan Control Assembly | — | Shop → |
Triggers, Springs & Seals
Service & Repair Parts
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 60-104 | Air Inlet Fitting | — | Shop → |
| 60-128 | Locknut Fluid Inlet USA Version | — | Shop → |
| 60-1375 | Cat X Rear Cap | — | Shop → |
| 2394820 | Cat Xpress Air Baffle | — | Shop → |
| 2396036 | Cat Xpress Stem Cap | — | Shop → |
| 2396785 | Cat Xpress Fluid Inlet | — | Shop → |
| 2400154 | Cat Xpress Retaining Ring | — | Shop → |
| 2403413 | Cat Xpress Fan Adjustment Housing | — | Shop → |
| 2403416 | Cat Xpress 3 Pring Fan Adj Knob | — | Shop → |
| 2403429 | Cat Xpress Set Screw Fan Adj | — | Shop → |
| 2410599 | Cat Xpress Gun Body | — | Shop → |
| 2412114 | Cat Xpress 1 16 Allen Wrench | — | Shop → |
C.A. Technologies CAT Xpress Spray Gun Documents
View All →C.A. Technologies CAT Xpress
CAT Xpress
C.A. Technologies service manual for the CAT Xpress. 5-page PDF — view online or download free from CET.
