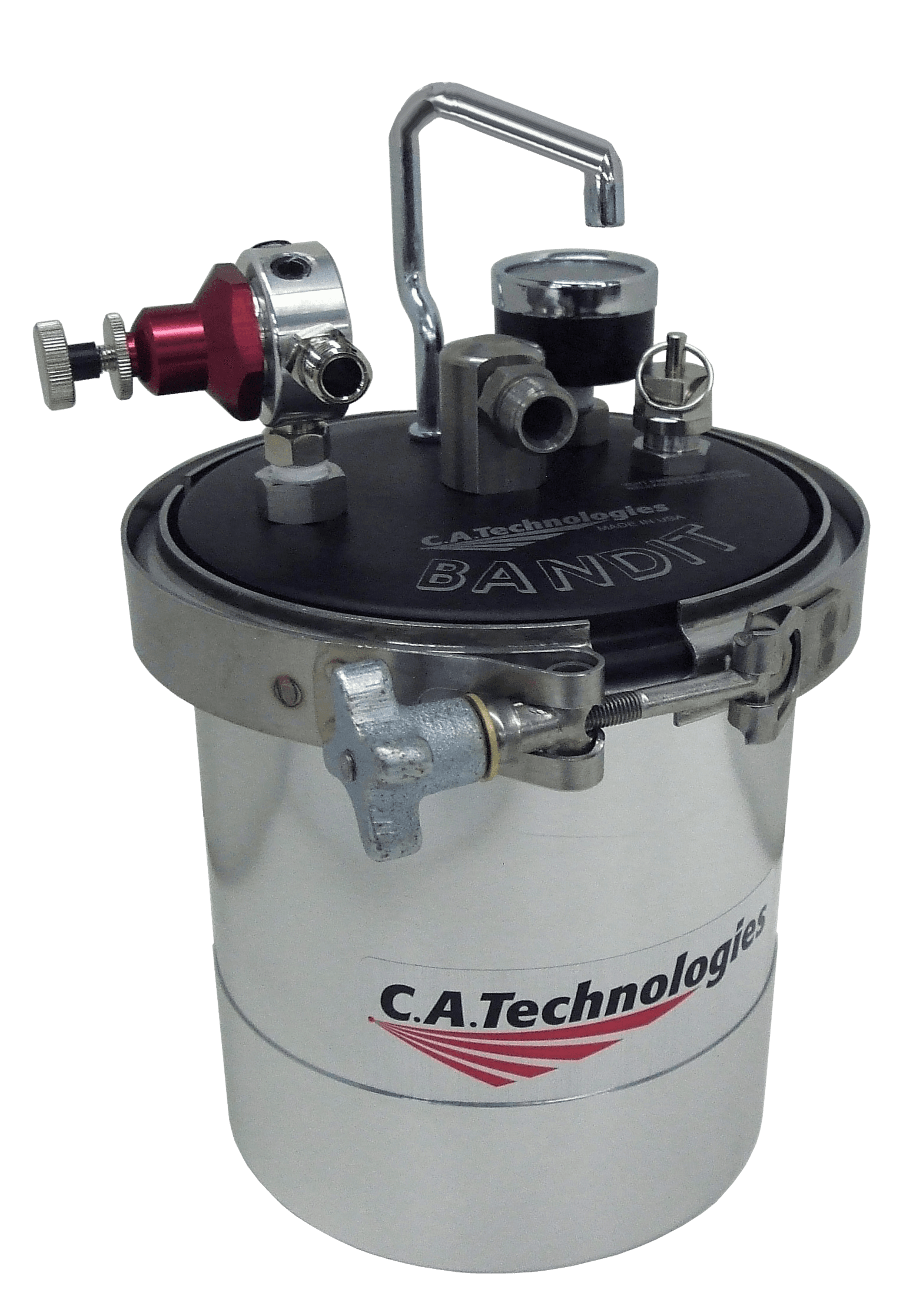

C.A. Technologies Bandit 2-Quart Pressure Cup
C.A. Technologies Bandit — 2-Quart Pressure Cup, Single/Double Regulated & Agitated
The C.A. Technologies Bandit is a 2-quart pressure cup that feeds material to a spray gun under regulated air pressure — the right amount of capacity for jobs too big for a 1-quart cup but smaller than a full pressure tank. A stainless steel band clamp provides 360° clamping pressure between the lid and canister for a secure, leak-free seal. It's available single regulated (51-600) for fluid-only pressure control, double regulated (51-602) for separate fluid and atomizing-air control, and in agitated versions (51-600A / 51-602A) that keep material in suspension for metallics, waterborne, and settling coatings. Every service item is stocked — from the 51-620-5 gasket pack to the 51-616 regulator assembly.
Specifications
Type
2-quart pressure cup
Feed
Pressure feed (to gun)
Body
Aluminum canister, stainless band clamp
Max Fluid
See regulator rating
Nozzle Range
—
Key Features
2-quart pressure cup
between a 1-quart cup and a full pressure tank
Stainless steel band clamp
360° sealing pressure
Single regulated (51-600)
fluid pressure control
Double regulated (51-602)
separate fluid and atomizing-air control
Agitated versions (51-600A / 51-602A) keep metallics & waterborne in suspension
Full service-parts support from gasket packs to the 51-616 regulator
Model Selection Guide
Choose single regulated for fluid-only control, double regulated to also control atomizing air at the cup, and an agitated version for metallics, waterborne, or any settling material. Call CET at 586-210-0555.
| Model | Tip Sizes | Pressure | Material Compatibility | |
|---|---|---|---|---|
| 51-600 | 2 qt | Single regulated | Fluid pressure control — general pressure-feed spraying | Shop → |
| 51-602 | 2 qt | Double regulated | Separate fluid & atomizing-air control | Shop → |
| 51-600A | 2 qt | Single regulated, agitated | Metallics, waterborne & settling coatings | Shop → |
| 51-602A | 2 qt | Double regulated, agitated | Metallics & settling coatings with full pressure control | Shop → |
Technical Specifications
- Gun Type
- 2-quart pressure cup
- Feed Type
- Pressure feed (to gun)
- Gun Body
- Aluminum canister, stainless band clamp
- Max Fluid Pressure
- See regulator rating
- Fluid Nozzle Range
- —
Replacement Parts
Genuine C.A. Technologies replacement parts in stock at CET. Part numbers without a shop link are available by phone — call or text 586-210-0555.
Cups, Lids & Liners
Repair Kits
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 10-121 | Shaft Seal Bearing Kit Agitated Bandit | — | Shop → |
Triggers, Springs & Seals
Service & Repair Parts
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 51-271 | Motor Exhaust | — | Shop → |
| 51-600 | Bandit 2 Quart Remote | — | Shop → |
| 51-611 | Band Clamp Assembly | — | Shop → |
| 51-616 | Regulator Assembly | — | Shop → |
| 51-623 | Pull Ring | — | Shop → |
| 51-625 | Fluid Outlet Assembly | — | Shop → |
| 51-630 | Relief Valve Assembly | — | Shop → |
| 51-633 | Splash Guard Bandit | — | Shop → |
| 51-636 | Check Poppet | — | Shop → |
| 51-638 | Relief Valve | — | Shop → |
| 51-642 | Handle | — | |
| 51-643 | Retainer Cap | — | Shop → |
| 51-644 | Spacer | — | Shop → |
| 51-645 | T Bolt | — | Shop → |
| 51-646 | Knob | — | |
| 51-648 | Impeller Mixed Flow C Mfi 21r | — | Shop → |
| 51-651 | Agitator Shaft | — | Shop → |
| 51-654 | Lower Shaft Guide | — | Shop → |
| 51-655 | Upper Shaft Guide | — | Shop → |
| 51-657 | Splash Guard Agitated | — | Shop → |
| 51-658 | Splash Guard Retainer | — | Shop → |
| 51-659 | Slinger Ring | — | Shop → |
| 51-663 | Hose Assembly | — | Shop → |
| 51-667 | Handle Assembly | — | |
| 51-669 | Double Reg Sub Assembly | — | Shop → |
| 51-671 | Splash Guard Spacer | — | Shop → |
| 51-672 | Bandit Anti Tip Stand | — | Shop → |
| 51-676 | Bandit Motor Base | — | Shop → |
| 51-677 | Bandit Air Motor | — | Shop → |
| 51-678 | Bandit Agitator Shaft Coupling | — | Shop → |
| 52-52 | Gage 60 Psi Back Mount | — | Shop → |
| 52-53 | Gage 15 Psi Back Mount | — | Shop → |
| 53-555 | Double Male Nipple SS | — | Shop → |
| 98-0119 | 9 16 18 Locknut | — | Shop → |
| 98-0120 | Jam Nut 5 8 18 SS | — | Shop → |
| 98-0124 | Acorn Nut | — | |
| 98-0132 | Ball | — | |
| 98-0179 | Set Screw 10 32 X 3 16 Lg SS | — | Shop → |
| 98-8011 | Teflon 0 Ring | — | Shop → |
C.A. Technologies Bandit 2-Quart Pressure Cup Documents
View All →C.A. Technologies Bandit 2-Quart Pressure Cup
Bandit · 51-600, 51-602, 51-600A, 51-602A
C.A. Technologies service manual for the Bandit 2-Quart Pressure Cup (models 51-600, 51-602, 51-600A, 51-602A). 5-page PDF — view online or download free from CET.
